C 32T-R-230V-REV-R410A

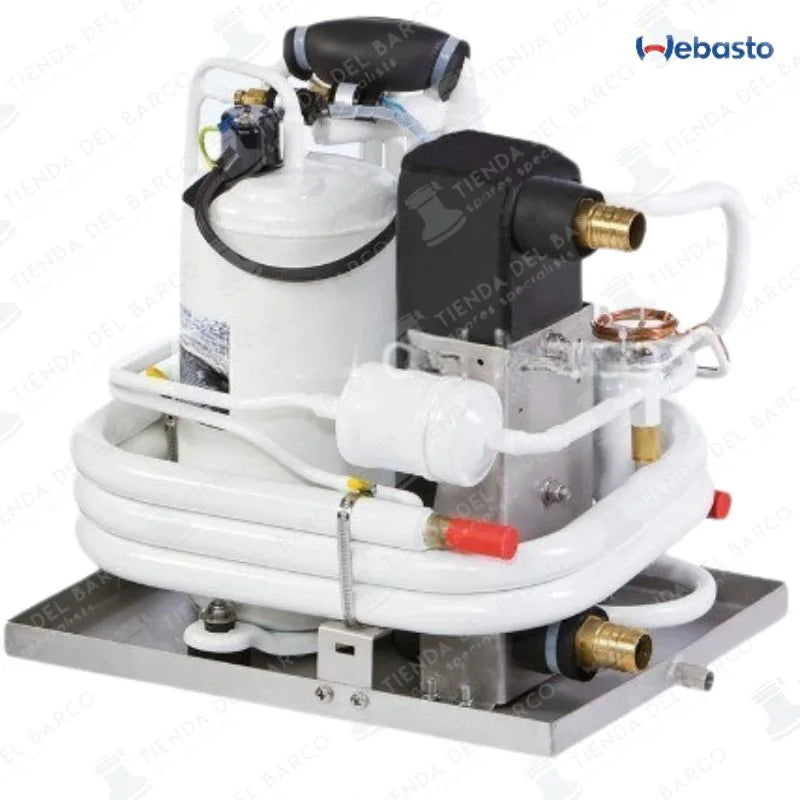

The Webasto WBCL1207001F is a BlueCool C-Series central chiller for marine environments, providing onboard cooling from a single unit. Suitable for three or more independent spaces, it distributes cooling capacity to multiple fan coil heat exchangers via a cooling-water circuit. This model is an upgrade from WBCL1207001E, featuring high-efficiency plate heat exchangers and using a water/glycol loop maintained at approximately +4 °C. It delivers 32,000 BTU of cooling power, offers up to 15% more efficiency, and continuous cooling performance for tropical conditions. It boasts a more compact construction, optimized electronics for easier installation and diagnostics (via USB), and optional CAN bus integration. Compressor noise is reduced by up to 25%. Seawater and cooling-water connections are on one side. It includes a stainless-steel tray with condensate drain and a long-lasting epoxy coating. Optional vibration dampers, silent blocks, and a soft-start option are available. It includes High Pressure and Low Pressure Service ports.
