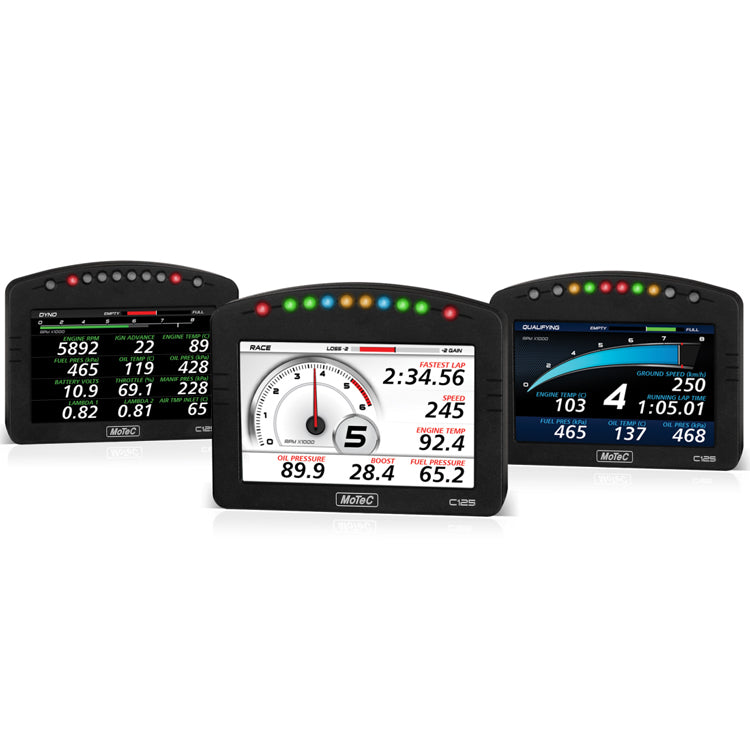

C125 125mm Color Dash Display and Logger

The MoTeC C125 is an integrated display, data logger, and auxiliary controller housed in a compact and durable unit. Its striking design is matched by powerful functionality, offering users an all-in-one solution that eliminates the need for separate devices. The vivid 125mm (approx. 5-inch) full-color TFT LCD screen boasts an 800 x 480 resolution with anti-aliased graphics, providing clear visibility even in direct sunlight due to its ultra-bright and anti-reflective properties. Numerous selectable, configurable layouts cater to both day and night viewing, allowing users to customize channels and labels for their specific applications. Integrated into the C125 is an array of ten full-color LEDs that can be programmed for use as shift lights, warning indicators, or other driver alerts. The color, function, and intensity of each LED are fully programmable, enabling the development of unique strategies and sequences. The device supports optional internal data logging with 120 MB of memory, offering fast downloads via Ethernet. It accommodates over 300 channels derived from a mixture of analogue and digital inputs, RS232, and CAN data channels, and can be configured to utilize sensors from existing engine management systems. Data analysis is facilitated by MoTeC's i2 Standard or i2 Pro software. The C125 can be used standalone or in conjunction with other electronic devices, including MoTeC CAN-based expanders. For customers wishing to integrate analog sensors or expand input capabilities beyond ECU data, an optional IO module provides several voltage, temperature, digital, and speed inputs, along with four auxiliary outputs for controlling external devices. Expander modules like the E888 or E816 can further increase input availability, making the C125 a versatile solution for numerous applications. The unit also supports wideband Lambda from PLMs or LTCs using Bosch LSU or NTK UEGO 5-wire sensors, and offers straightforward control for lights and pumps.
