C5 Corvette Roll Cage Kit

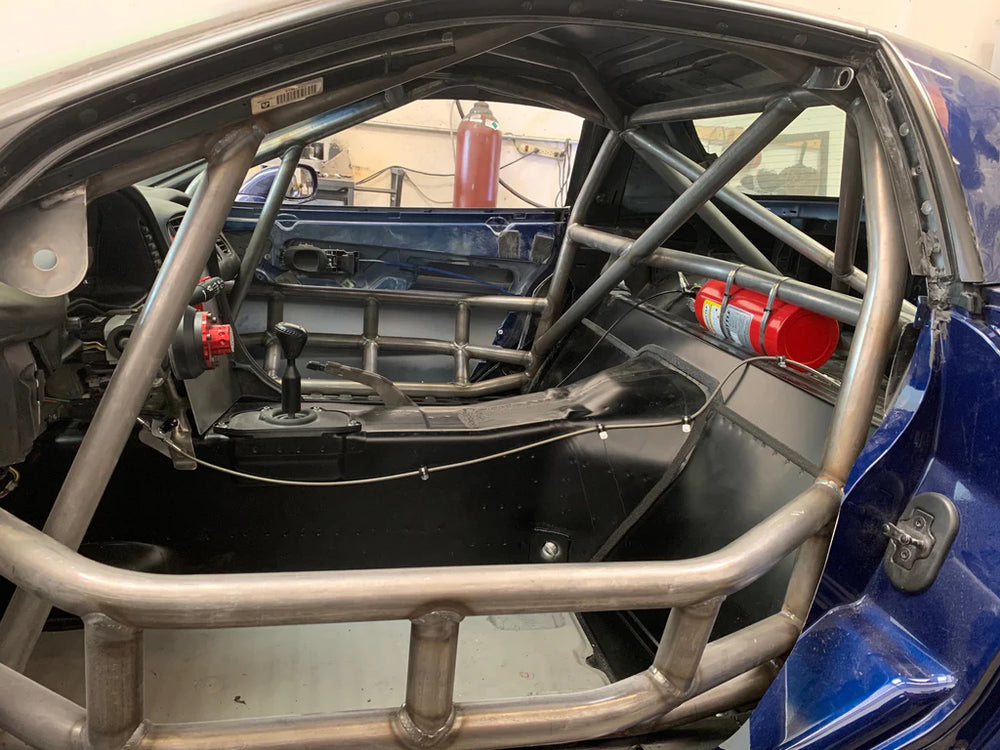

The Trackspec Motorsports C5 Corvette Roll Cage Kit is a comprehensive weld-in roll cage system engineered specifically for 1997-2004 C5 Corvettes, including Coupe (Targa) and Hardtop (Z06 or FRC) body styles. This kit is designed to meet and exceed the rigorous demands of racing organizations such as SPEC Corvette, SCCA T1, GT2, and NASA ST. Crafted with precision, all bars are CNC notched and bent in Southern California, ensuring an accurate fit and optimal placement. The design prioritizes safety and functionality, featuring main hoop mounting directly to the top of the frame, which is considered the safest mounting point. The A-pillar design is maximized for driver head clearance, though it requires some interior notching. All bars are tucked as high and as tight as possible to maintain maximum interior space and driver egress, even in emergency situations. The dash bar is integrated to allow for the reinstallation of the dash and instrument panel. Standard features include FIA bars, gusseting and reinforcement tubes, pre-fabricated mounting plates, and X door bar bowtie plates. The main hoop comes pre-welded and includes close-out plates to conceal cut areas in the rear bulkhead. Installation is supported by instructional videos that provide measurements and fabricator tips, making it a user-friendly DIY kit. Notably, this kit does NOT require gas tank removal for installation. Options are available for tubing thickness (.095 mild steel or .120 mild steel), door bar style (Standard X or Nascar), and rear bracing (Diagonal or X Brace). Additional options include a pre-welded main hoop, electrical cut-off plate, driver's window net kit, a direct bolt-in center console dash plate (required to relocate the ignition switch), weld-on lap seat belt mounts, fire extinguisher bracket, shoulder harness retaining rods, steering wheel hook, and a test weld triangle kit. Approximate weights vary based on configuration and tubing thickness, ranging from 124.8 lbs to 170.8 lbs.
