Engines and Components› Pistons and Piston Rings

JE Pistons

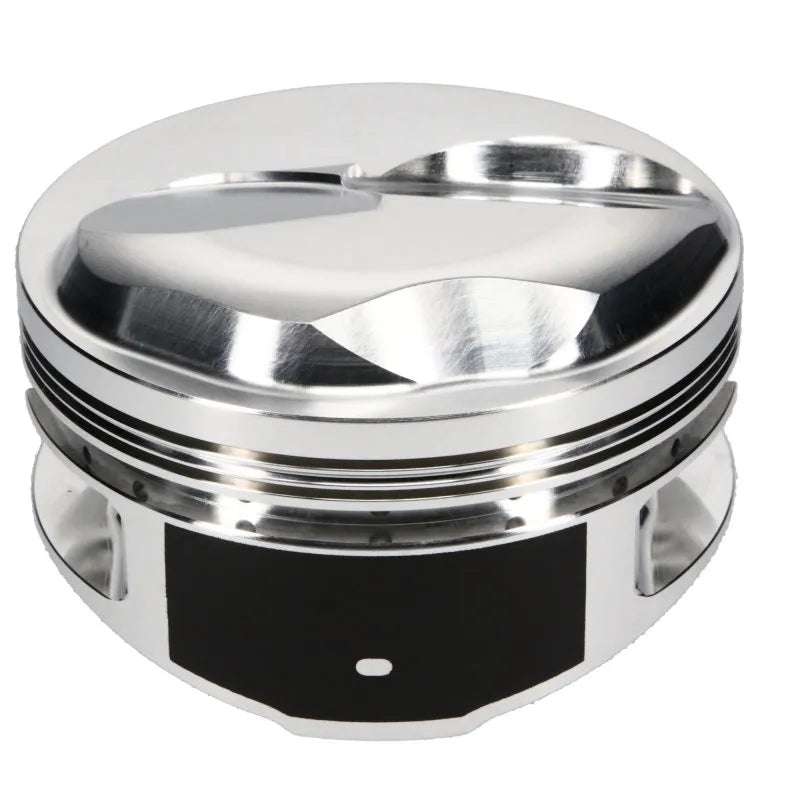

JE Pistons BBC .560 DOME Set of 8 Pistons

$1,096.94

SKU: J001 258279

In Stock
In Stock
Ships by Jun 11
Free Shipping
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Professional / shop required

Description

JE Pistons for big block engines are compatible with forced induction, nitrous, and angle milled heads. Valve reliefs accommodate oversized valves and long duration, tight lobe separation cams. Compression Height figured using 10.180" block height with zero deck clearance. Precision CNC machined ring grooves accept 1/16, 1/16, 3/16 rings. Will fit both open and closed chamber cylinder heads. Includes: Pin #990-2930-18-51S (174g), Double spiral locks (#990-042-CS). Compression Ratio: 110cc 13.7:1, 118cc 12.5:1, 124cc 11.7:1. Dome Volume: 43cc. Stroke 4''. Rod Length 6.135''. Compression Height 1.645''. *Made to order.*

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandJE Pistons
Part NumberJ001 258279
