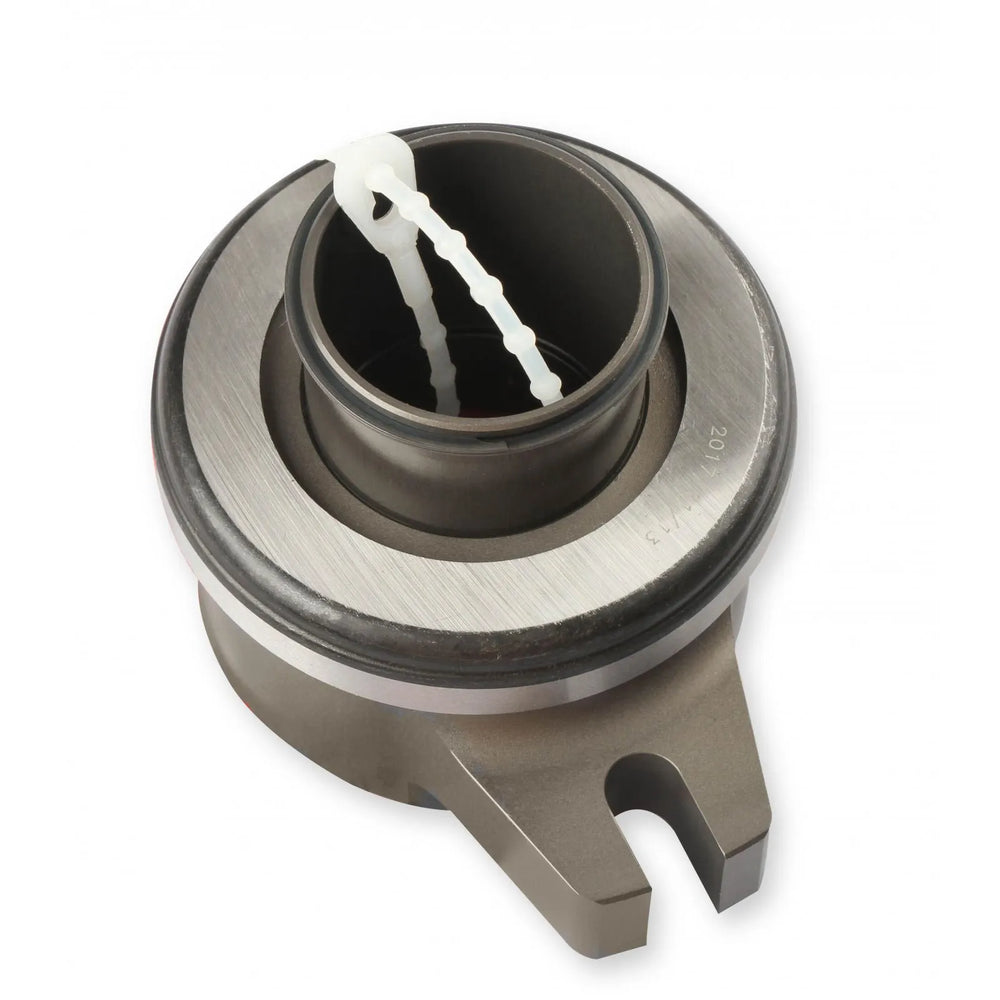

Clutch Release Bearing Hydraulic Throwout Bearing Designed For Retrofitting Early Or Late GM V8 Engines With A T-56 Transmission. Hays

Part #: 82-104

Hays release bearings are a floating design and feature large O-rings and PTFE backup rings in the grooves to help eliminate leakage along with a long service life. A snap ring on the front of the piston prevents over travel and keeps from pushing the bearing off the sleeve.The sealed bearing snaps in place and is easily serviceable.Features and Benefits:Designed to fit Tremec T-56 and TR6060 manual transmissionsOffers easy way to add easy effort hydraulic clutch actuationWorks with single or dual disc clutchesFloating design bearing with large O-rings and PTFE backup rings to eliminated fluid leakageKits include bearing assembly, mounting hardware, adjustment shims plus -3AN bleed and feed linesDetails:Bearing Style: HydraulicBleed Line Included: YesBleed Line Length (inches): 18Emission Code: 5Feed Line Included: YesFeed Line Length (inches): 36 InchWarranty: Manufacturer's Limited 90 Day WarrantyAssociated Comments:The included shims are the following thicknesses: Silver = .065 inchBlack = .040 inch . Requires a .750 inch bore master cylinder with a minimum of 1.1 inch stroke

Features:

• Designed to fit Tremec T-56 and TR6060 manual transmissions
• Easy Way To Add Hydraulic Clutch Actuation
• Offers easy way to add easy effort hydraulic clutch actuation
• Works w/Single Or Dual Clutches
• Works with single or dual disc clutches
• Incl.Bearing Assembly/Hardware/Shims/Feed Line
• Floating design bearing with large O-rings and PTFE backup rings to eliminated fluid leakage
• Kits include bearing assembly, mounting hardware, adjustment shims plus -3AN bleed and feed lines

Hydraulic Throwout Bearing Designed for retrofitting early or late GM V8 engines with a T-56 transmission.
