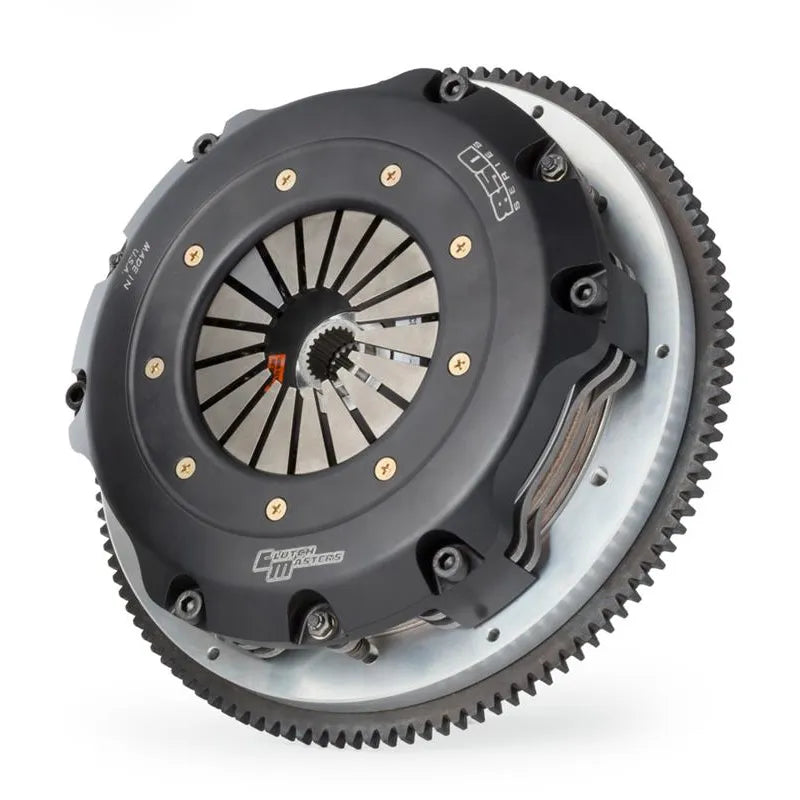

Clutch Masters 04-05 VW R32 3.2L MK4 850 Series Race Twin Clutch Kit (Needs FW-207-B-TDA)

$1,760.00 $1,496.00 Save $264.00

SKU: C004 02032-TD8R-XH

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $100
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Moderate — 2–4 hours

Description

Part #: 02032-TD8R-XH

The cover assembly is machined from billet aluminum and is then Type 3 hard anodized. Our billet covers have roughly 25% more tensile strength than the competition's cast unit. By focusing our ability on machining the trongest cover possible while maintaining minimal weight, we are basically able to eliminate any flex in the cover. Our billet covers see only .003" of flex where as a cast or stamped unit can see as much as .030" of flex. By eliminating this flex in the cover, the driver is able to operate the clutch much more consistently and confidently. All the movement being applied to the diaphragm of the clutch from the throwout bearing is used solely to engage and disengage the clutch and isn't wasted by the cover flexing first. The strength of our covers also results in greater clamping force over the same amount of area vs. a cast or stamped cover. This means our twin discs are easy to drive and have superior clamping force to make sure all the power your engine is making is being utilized.

Conversion kit, will not work with OEM flywheel, built to work exclusively with Clutch Masters flywheel

MIA's Description

The Clutch Masters FX850 is an 8.5" (216mm) Twin Disc clutch designed for high horsepower and torque applications while maintaining reasonable pedal pressure. It features a billet aluminum cover assembly that is Type 3 hard anodized, offering significantly more tensile strength and less flex compared to cast units. The 850 Twin Disc can be upgraded to the DLX series for dampened discs. A unique feature is the QR System (Quick Release Pressure Plate), which incorporates three spring-loaded bolts for smooth engagement, disengagement, and reduced clutch noise/chatter. Flywheels are made from either billet 6061-T6 aluminum (SFI spec 1.2, Type 3 hard coat anodized, replaceable insert) or 1045 billet steel (black oxide treated). This "Race" (TD8R) version includes one sprung ceramic disc directly connected to a second ceramic disc. This kit specifically refers to "Clutch Masters 04-05 VW R32 3.2L MK4 850 Series Race Twin Clutch Kit (Needs FW-207-B-TDA)".

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandClutch Masters
Part NumberC004 02032-TD8R-XH
