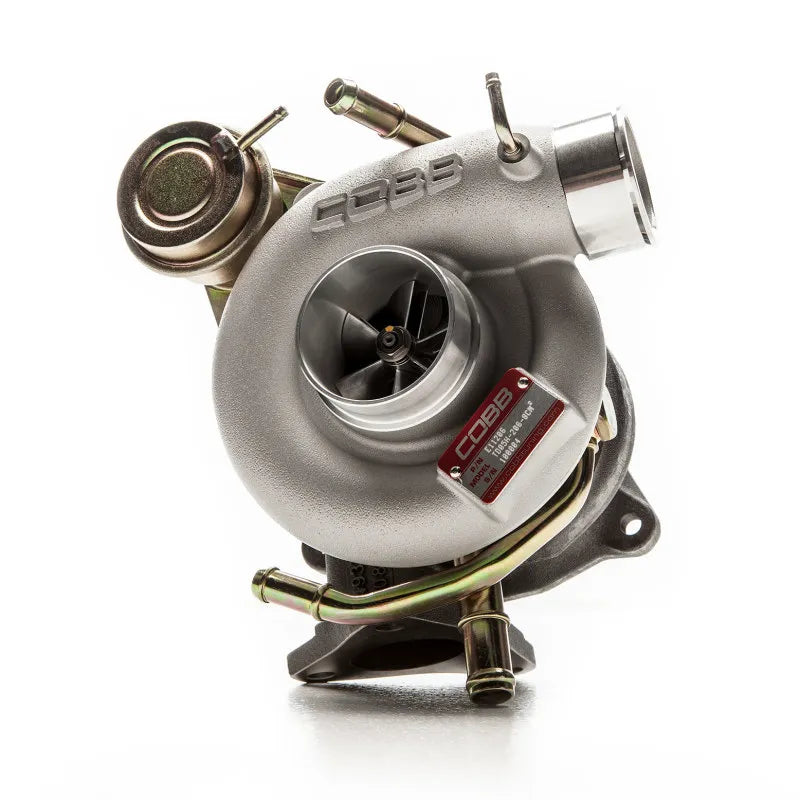

Cobb TD05H-20G-8 Turbocharger for WRX STI

$1,470.00

SKU: C005 E1120G

In Stock
In Stock
Ships by Aug 2
Free Shipping over $100
30 Days Return
INSTALL DIFFICULTY
DIY PRO SHOP

Moderate — 2–4 hours

Description

Part #: E1120G

MIA's Description

The COBB TD05H-20G is an ideal turbo upgrade for those looking to increase the top-end power of their STI while maintaining low and mid-range response. Capable of producing 400hp and retaining excellent throttle response, the COBB 20G is a perfect turbocharger for street or track use! Features: 20G Compressor Housing with 68mm Billet Wheel 8cm^2 Turbine Housing with 55.8mm Wheel (TD05H) 640 CFM .57 A/R 1 Bar Actuator. Specs: Single Scroll exhaust housing Offset compressor outlet for more room around the throttle by wire connector Sleeve bearing turbo with 360 degree thrust bearings with modified oiling strategy for greater thrust capacity Compressor- Inducer: 52.5mm Exducer: 68mm Turbine- Inducer: 55.8mm Exducer: 49.2mm. This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number: D-660-14D-660-46.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandCOBB
Part NumberC005 E1120G
