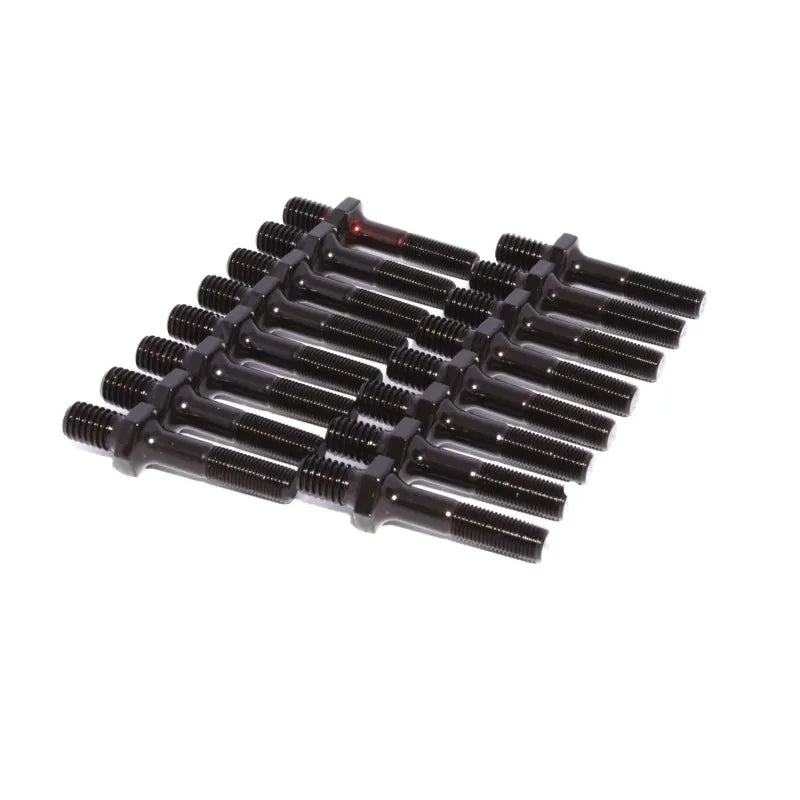

Hi-Tech Studs 7/16" Base 7/16" Rocker

Part #: 4506-16

COMP Cams takes pride in having the finest Rocker arm Studs available on the market. The High Energya and Magnum Series Studs work well in Applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required as with high rpm Roller Cam Applications, the Hi-Techa Race Stud is the answer. This Stud has a thin jam nut for Rocker clearance, rolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams Studs have generous radii and a black oxide finish. Designed for ultimate strength and locking force High Energy and Magnum polylocks are best for moderate lift and spring pressure Applications Hi-Tech Polylocks work well in all high end Race applications. The Stud girdle polylocks are precision ground for minimum runout and tapered for extra strength in the locking area.Base ThreadPart #DescriptionDiameterLengthStud DiameterEffective Stud Length4506-16Hi-Tech Race Rocker Stud7/16".710"7/16"1.750"

With a 7/16" base thread and a 7/16" rocker thread, the Hi-Tech stud features rolled threads for maximum contact and a ground-flat top for accurate valve adjustment. This stud set has a 1.750" effective stud length with a .710" long base.
