COMP MID-MT PREM ACC SYSTEM, LS7-NATURAL

Part #: 20-190

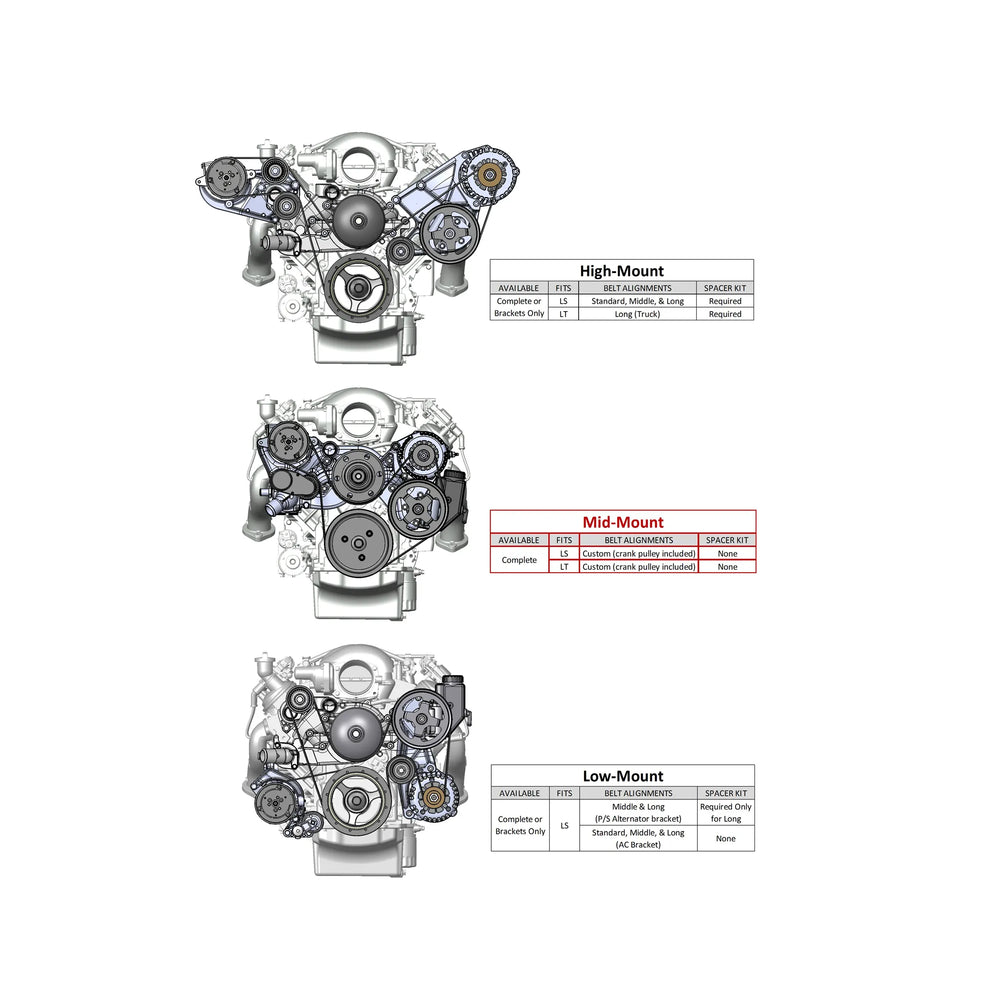

Holley's Premium Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. Among the many swap friendly features are bottom heater outlets for clearance in tight applications. The Holley designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with that of the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with baffled reservoir are also integrated.

Features:

• Bracketless accessory mounting with ultra-easy assembly
• Bottom outlet heater hose options for swap application clearance
• LT1 style premium 150 amp alternator
• LT1 style water pump cartridge design
• Compact SD7 A/C compressor
• Type II power steering pump with baffled reservoir
• P/S adapter hardline to AN -6 adapter included
• Steam tube input port
• Shortened top outlet nipple for more radiator hose turns and routing room
• OE pulley ratios for optimal accessory performance
• No adapters/spacers required!
• Billet tensioner cover
• Billet alternator, and compressor pulley covers
• SFI certified damper w/hard anodized billet crank pulley
• Works with all common aftermarket and factory Throttle bodies and intakes.
• Works with Hooker turbo manifolds.
• Fits LS7 and LS engines with dry sump and without supercharger.

LS7 Engine Drive includes SD7 A/C Compressor, Alternator, P/S Pump, Tensioner,SFI certified damper w/hard anodized billet crank pulley, Belt, & Pulleys - Fits Dry Sump Engines.
