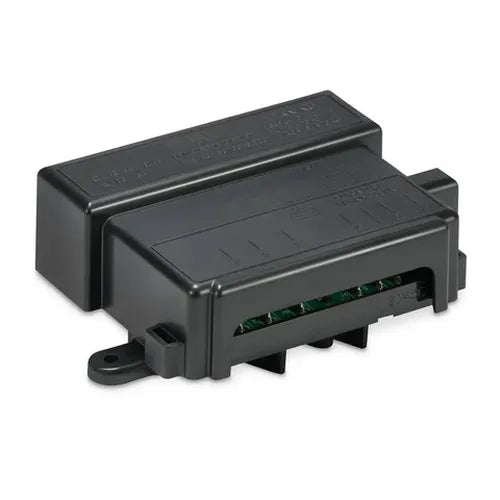

CONNECTION BRICK COMPLETE

The Dometic Refrigerator Power Control Board Kit (3316348.900) is a crucial component for maintaining the functionality of your RV's refrigerator. This kit offers easy installation and is compatible with a wide range of Dometic refrigerator models, including DM2652, DM2662, DM2663, DM2852, DM2862, DM3862, NDM1062, NDR1062, RM2351, RM2354, RM2451, RM2454, RM2551, RM2554, RM2620, RM2652*, RM2662, RM2820, RM2852, and RM2862. This replacement lower control board is specifically designed for Americana gas absorption refrigerators and includes an integrated re-ignitor for seamless propane functionality. It serves as the main circuit board, controlling ignition, propane operation, and power to the AC element, which are all vital for efficient cooling. The board features several key connections for comprehensive system control: P1: To upper control board; P2: Thermistor; P3: To gas valve; J2: To interior light / climate control; J4: Positive 12V DC from terminal block; J5: AC line voltage (black); J6: AC neutral line (white); J7: AC neutral out to AC heater; J8: AC line out to AC heater Switched side; J10: Negative to Chassis ground. This kit replaces previous board numbers: 3850712013, 3316348900, 3316348.000, 3316348000, and 0713814221829.
