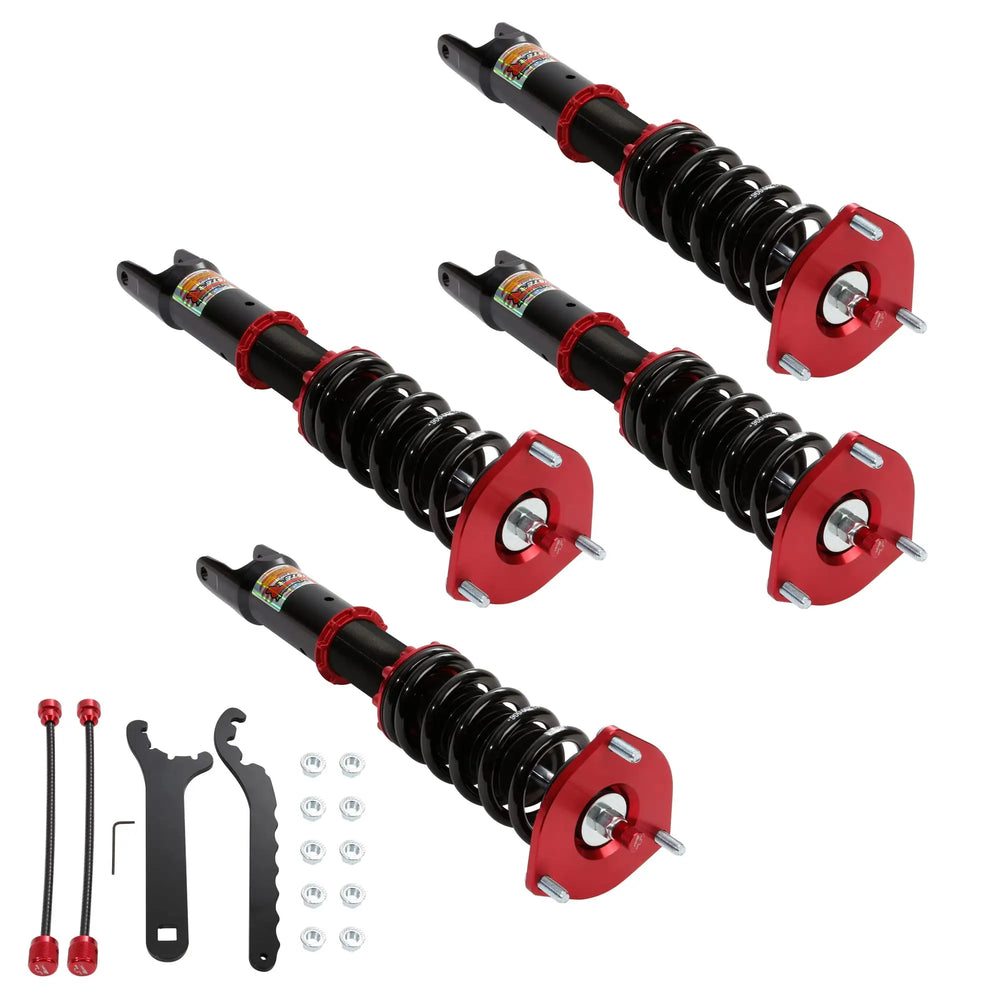

CRD Coilover Kit

Renowned for their blend of build quality, aesthetics, and performance at a competitive price, these coilovers offer an enhanced experience with higher spring rates and refined damper valving, length, and travel. These coilovers utilize digressive damping with MeisterR's CRD (Close Ratio Damping) technology. This system provides a superior balance between exceptional ride quality over varied road surfaces and precise control when pushing the limits on a track. Key features include 32-way combined compression and rebound damping adjustment, allowing for fine-tuning of suspension characteristics. Both pre-load and ride height adjustments are independent, offering extensive customization possibilities. MeisterR has developed specific configurations for each Miata generation: For the NA/NB models, the coilovers feature aluminum top mounts with spherical bearings (front) and extended aluminum top mounts with hardened rubber bushings (rear), paired with front spring rates of 12.5kg/mm (plus a helper spring) and rear rates of 7kg/mm. The NC MX5 variant includes aluminum top mounts with hardened rubber bushings for both front and rear, with front spring rates of 10kg/mm and rear rates of 6kg/mm. For the ND MX5, aluminum top mounts with spherical bearings are used at the front, and aluminum with hardened rubber bushings at the rear, with spring rates of 10kg/mm (front) and 6kg/mm (rear). The ND kit includes rear shock adjuster extensions as standard. While the MeisterR ZetaRace coilovers are designed to be a top all-around suspension solution within their price bracket for the Mazda MX5, they are marked 'For Off-Road Use Only' and are not DOT or TUV approved. They come with a 12-month warranty against defects in material and workmanship from Moss Motors.
