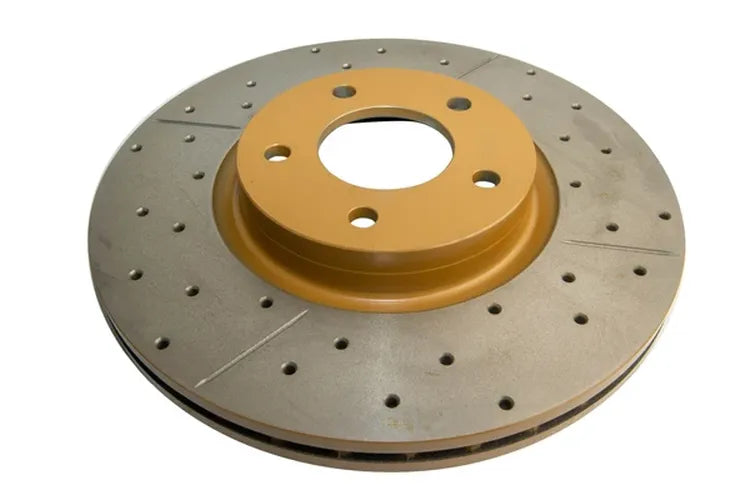

Cross-Drilled and Slotted Front Brake Rotor

The Stillen DBA2962X is a performance aftermarket brake rotor designed to provide superior stopping power and style beyond standard OE levels. Manufactured by Disc Brakes Australia (DBA), this rotor is cast from high carbon alloyed iron that has undergone Thermal Stability Profiling (TSP) to ensure it can withstand the intense heat and stress generated during demanding braking applications. This front brake rotor features DBA's patented Kangaroo Paw ventilation system, which utilizes 144 diamond and teardrop-shaped pillars. This design results in up to a 30% increase in surface area and a 20% improvement in cooling efficiency compared to traditional straight vane designs, helping to prevent brake fade and maintain consistent performance. The cross-drilled and slotted surface pattern enhances heat dissipation and gas exit, further contributing to optimal braking performance. Key technical specifications for the DBA2962X include an outside diameter of 320 mm, an overall height of 48.5 mm, a nominal and discard thickness of 25 mm, a center hole diameter of 72 mm, and 5 stud/lug holes. It is a vented rotor type.
