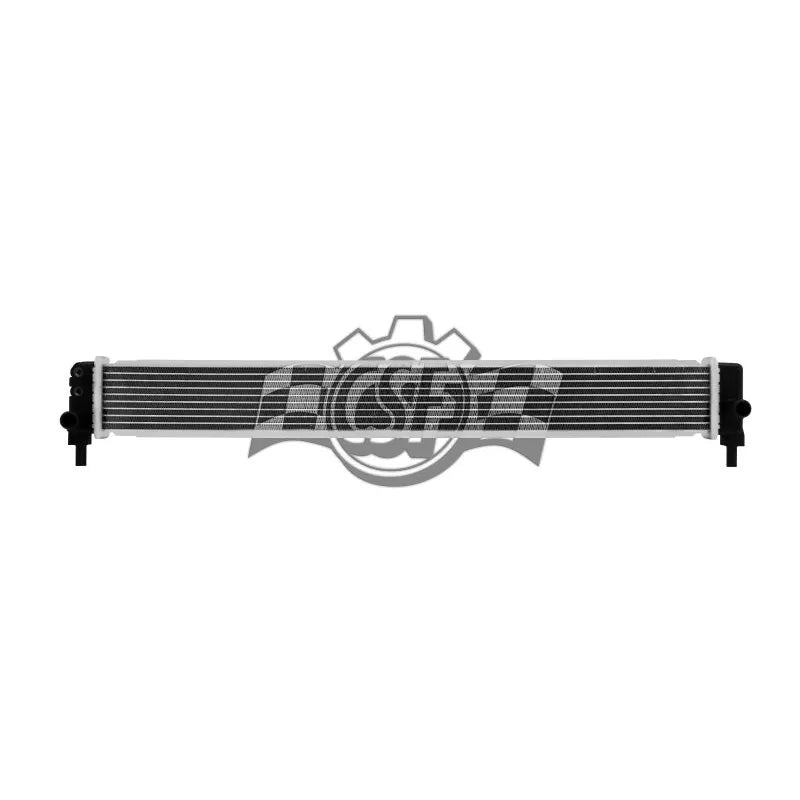

CSF 10-15 Toyota Prius 1.8L OEM Plastic Radiator

The CSF Radiator is a drive motor inverter cooler with a high-performance aluminum core and durable plastic tanks. It features a single core row designed for crossflow applications, with core dimensions of 23-9/16" L x 2-3/8" W x 7/8" D. The tanks are constructed from glass-filled virgin grade engineered plastic resins for enhanced strength. This radiator is equipped with EPDM rubber gaskets rated for temperatures as low as -120°F.

Each unit is 100% leak tested at 150% of operating pressure before factory shipment. The inlet is located at the top right and the outlet at the bottom left, with 11/16" hose sizes. This model does not include a transmission cooler or a radiator cap.
