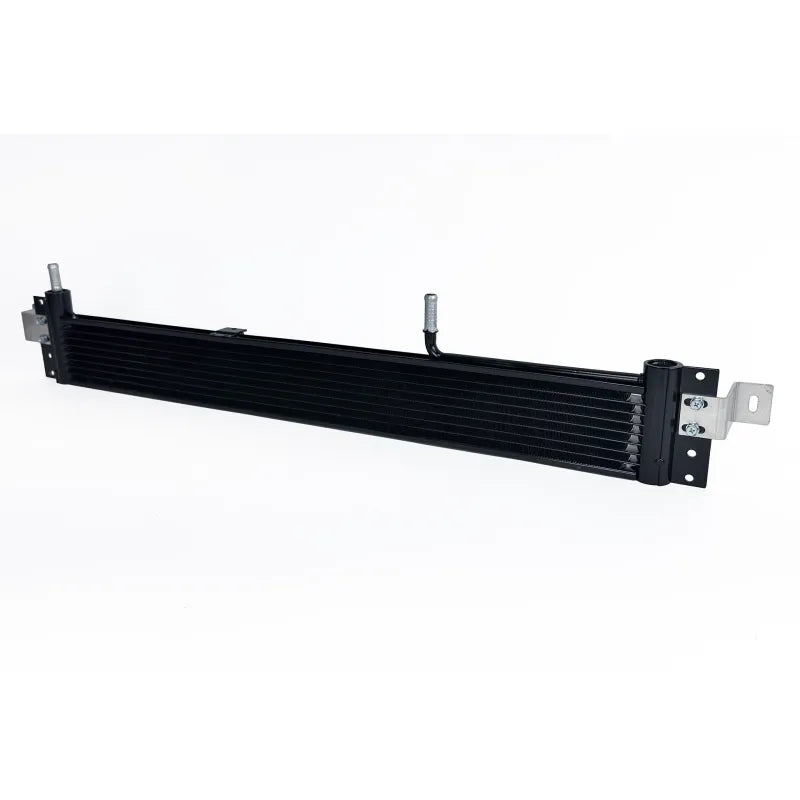

CSF 15-25 Ford F-150 and Raptor Transmission Oil Cooler

The CSF 8102 is a high-performance transmission oil cooler designed for 13th and 14th generation Ford F-150 and 2nd and 3rd generation Raptor models (2015-2025). Developed in collaboration with Full-Race, this cooler aims to extend transmission life, improve towing capacity, and eliminate performance limitations caused by high transmission fluid temperatures during demanding conditions like heavy towing or off-road driving. It features CSF's proprietary AC Condenser Technology, utilizing a 1-Row Super-High Pressure 26mm 10-Channel Microtube architecture for optimal oil flow and maximum cooling surface area, resulting in significant temperature reduction. The CSF 8102 is 40% larger than the factory cooler and dramatically improves heat dissipation compared to OEM units. It boasts 8 rows of 8mm tall multi-louvered fins for exceptional cooling performance and is designed to outperform even the dual cooler configuration found in Raptor and high-performance models. The construction is welded all-aluminum, robot-welded, and features OEM-style inlet/outlet connections and laser-cut mounting brackets. It comes in a black finish for an OEM+ look and includes a 2-year limited warranty.
