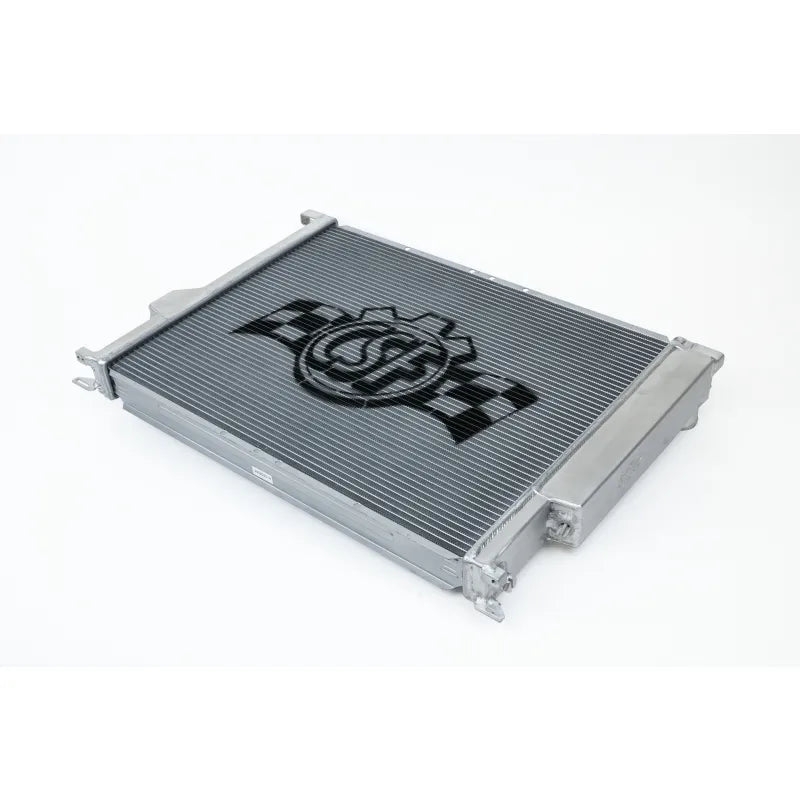

CSF BMW S54 Swap Into E36 / E46 Chassis High Performance Radiator

Part #: 7211

Because the S54 requires a much more robust oil cooling system than the E36's S52, CSF made special provisions to fit two different race spec oil coolers. To do this, the height of the radiator was reduced slightly so the oil coolers can fit under it in a factory style location. The radiator includes mounting brackets which can be adjusted to fit both oil coolers (CSF #8032 & #8240). CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.

Features:

• 2-Row - 42mm Ultra-High-Performance Core
• CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish
• All-Aluminum Race Style Drain Plug
• Includes 2 top covers (black and satin) to cover the top plate for a clean OEM+ look
• Includes fan brackets for 16 inch SPAL Fan (SPAL #30100400 - not included)
• Includes Oil Cooler Mounting Brackets that fit both the CSF #8240 & CSF #8032
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

CSF manufactures the most advanced and efficient radiator in the industry for your S54 Swap E36. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
