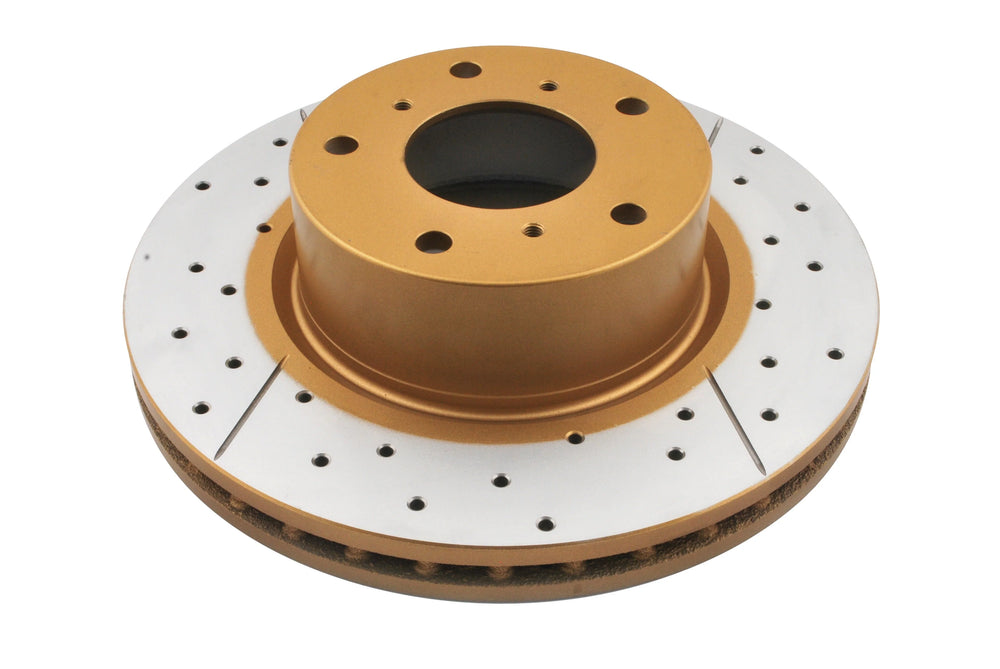

DBA Brake Rotor

The DBA DBA040X is a direct replacement brake rotor engineered for daily drivers who desire the aesthetics of a performance component without the associated cost. This rotor incorporates DBA's patented Kangaroo Paw ventilation system, which utilizes a series of diamond and teardrop-shaped pillars. This design significantly increases surface area, leading to up to a 30% improvement in heat dissipation and a 20% increase in cooling efficiency compared to traditional straight vane designs. Additionally, the En-shield coating protects the rotor and eliminates the need for pre-installation cleaning, while a machine-turned CBN polish minimizes disc thickness fluctuations and pad knock. Constructed from high-carbon alloyed iron, the DBA040X undergoes Thermal Stability Profiling (TSP) to ensure its metallurgy can withstand increased stress and heat from demanding braking applications. The rotor features a coated surface treatment, is vented, and has a non-cryo treated rotor material. Its dimensions include an outside diameter of 296mm, a nominal thickness of 28mm, and a height of 83mm, with 5 lug holes. This specific rotor is intended for the front of the 2004 Pontiac GTO. It is recommended for normal commute driving and is classified as an OE replacement with medium budget suitability.
