Drivetrain› Automatic Transmissions and Components

Allison

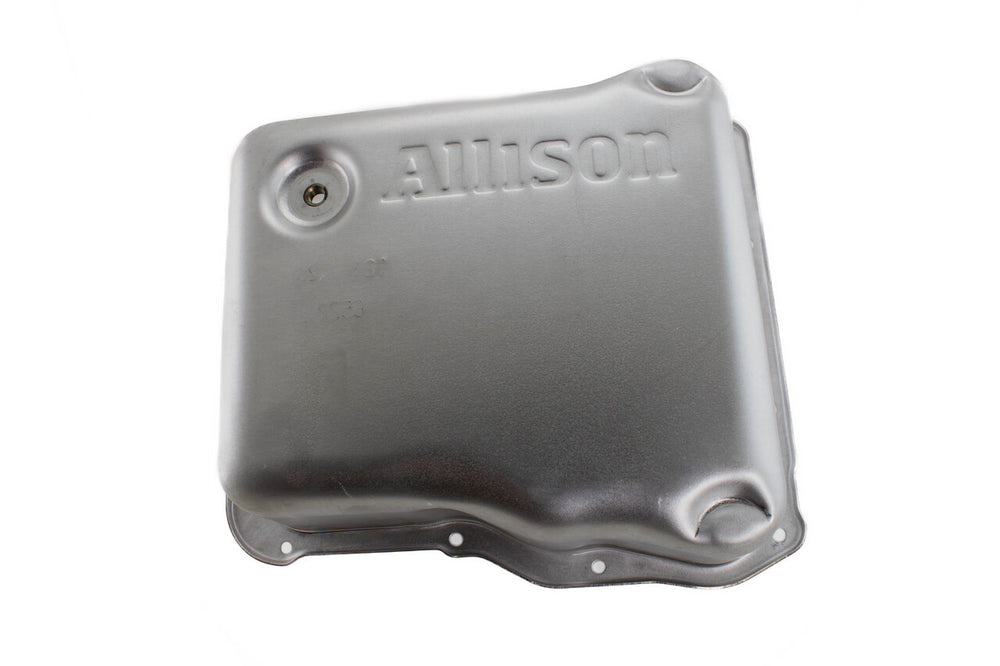

Deep Sump Transmission Pan

$147.64 $134.82 Save $12.82

SKU: 29536522

Special Order
Free Shipping over $200
$100 Minimum Order
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Easy — 1–2 hours

Overview

The Allison 29536522 is a genuine stamped steel deep sump transmission pan designed for heavy-duty applications. It increases fluid capacity by approximately 3 quarts over stock, which helps keep the transmission cooler and performing better. The deep sump design does not reduce ground clearance, maintaining off-road capability. This pan is a direct replacement for the factory shallow pan and is made to Allison's OEM standards for reliability and durability.
Show original supplier description
The Allison 29536522 is a genuine stamped steel deep sump transmission pan, originally designed by Allison for heavy-duty applications and built to withstand the demands of Chevrolet and GMC HD trucks. This deep sump pan increases transmission fluid capacity by approximately 3 quarts over the stock shallow pan, leading to improved cooling and extended transmission performance, especially during towing, hauling, or off-road use. Despite its increased capacity, the design ensures there is no reduction in ground clearance, preserving the vehicle's off-road capability. It serves as a direct replacement for the factory shallow pan, though a deep sump filter is required for proper fitment. This genuine Allison part offers a direct upgrade path for Allison 1000 series transmissions from 2001 to 2019. It is noted that the drain plug and pan gasket are typically reusable and not included with the pan assembly.

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandAllison
Part Number29536522
CategoryDrivetrain
