Deka 60lb/hr High Impedance Fuel Injector with Minitimer

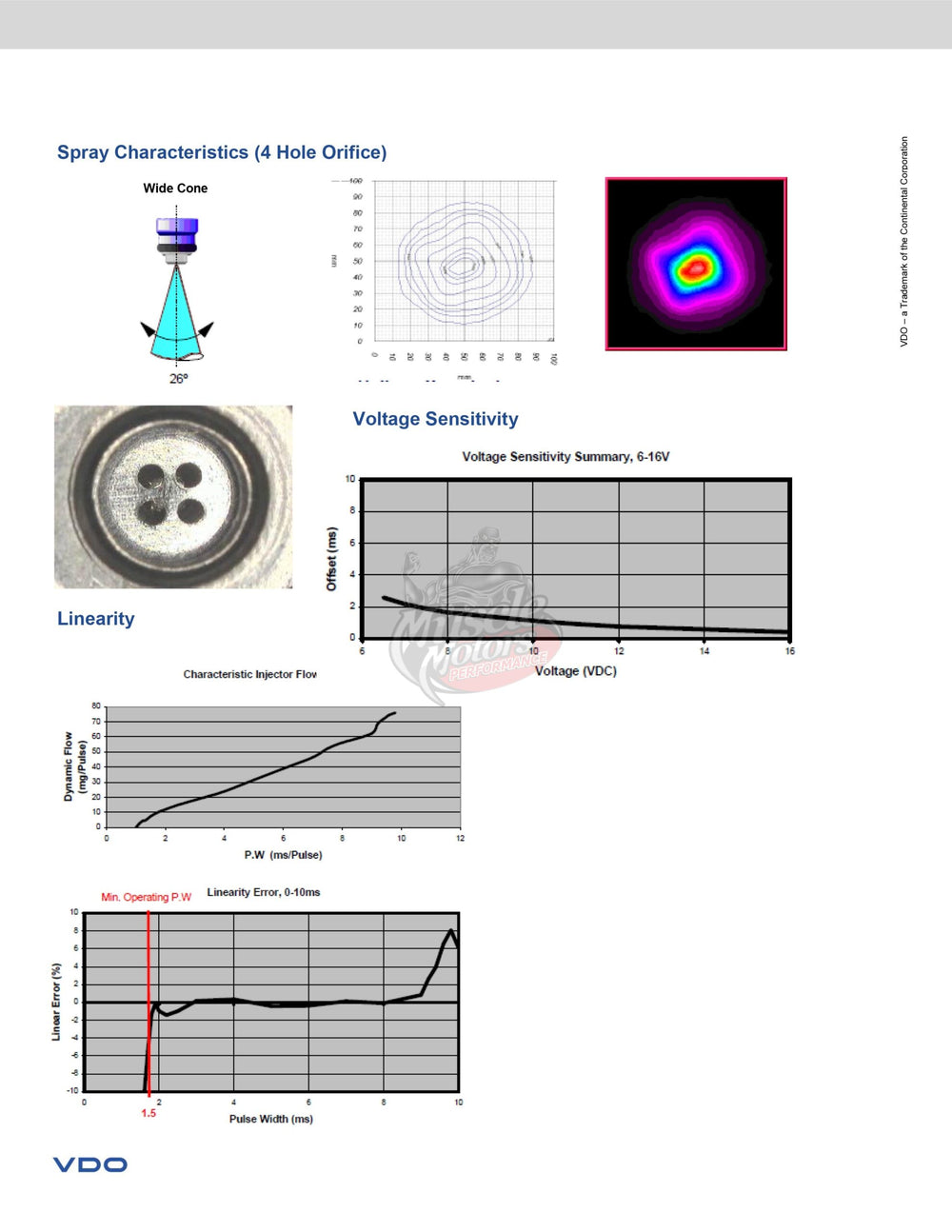

The Siemens Deka IV fuel injector, part number FI114961, is a high-impedance, long-style injector designed to deliver enhanced engine performance and drivability. These genuine Siemens / Mototron injectors flow 60 lbs/hr at 43.5 PSI (3 BAR) and can deliver up to 85 lbs/hr at 87 PSI. Despite their high flow rate, they maintain linearity and control at low pulse widths, making them suitable for demanding applications like ULEV, and even turbocharged or supercharged environments that experience high fuel system pressures. Engineered for optimal performance, the DEKA 4 series injectors feature a multi-orifice tip that produces a true 30-degree spray cone. This optimized spray pattern improves fuel-air mixture preparation, leading to lower Brake Specific Fuel Consumption (BSFC) and enhanced idle quality compared to injectors with simpler designs. The high-impedance nature of these injectors (12.5 Ohms coil resistance) ensures compatibility with most Electronic Control Units (ECUs) without requiring ECM driver modifications. These injectors utilize the common Minitimer EV1 connector, which is found on many older and late-model OEM applications, including GM TBI, TPI, LT1, LT4, LS1, some LS2, and some LS6, as well as most European applications. This direct compatibility with the EV1 connector eliminates the need for adapters or modifications to factory connectors. The injectors are factory-fitted with durable Viton upper and lower o-rings for a reliable seal. Key specifications include a gain of 0.11ms/mg, an offset of 0.055ms, a turn-on time of 1.14ms at 14VDC, and a turn-off time of 0.85ms at 600KPa. The orifice type is multi-orifice, and the spray pattern is a 30-degree cone.
