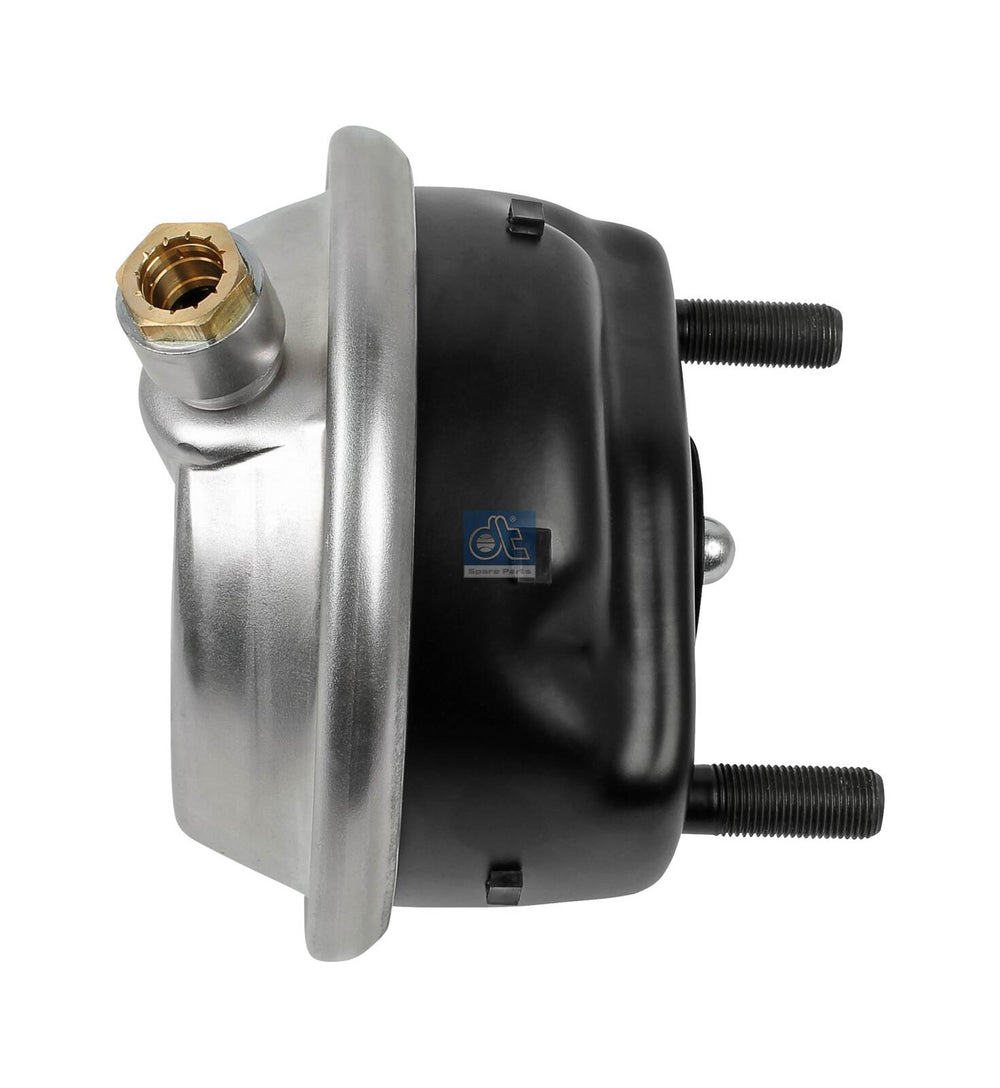

Diaphragm Brake Cylinder Type 24

$50.00

SKU: 465568

In Stock
In Stock
Ships by Aug 5
Free Shipping over $100
30 Days Return
INSTALL DIFFICULTY
DIY PRO SHOP

Moderate — 2–4 hours

Description

The DT Spare Parts 4.65568 is a diaphragm brake cylinder, an essential component for your vehicle's braking system. It features a 'Type 24' version, a height of 64mm, and a lever arm length of 15mm. The cylinder is equipped with two thread sizes, M16 x 1.5 and M22 x 1.5, ensuring broad compatibility. It carries the OE number 007 420 7724, which is also listed among its OEM cross-references by MERCEDES-BENZ (005 420 7624, 007 420 7724, 007 420 8324, A005 420 7624, A007 420 7724, A007 420 8324). The product weighs 3757g. It is noted as 'New' with availability from an external warehouse and comes with a 14-day return policy.

MIA's Description

The DT Spare Parts 4.65568 is a diaphragm brake cylinder designed for automotive applications. It features a version Type 24, a height of 64mm, and a lever arm length of 15mm. The cylinder has two thread sizes: M16 x 1.5 and M22 x 1.5. It is manufactured by DT Spare Parts and has an OE number of 007 420 7724.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandDT SPARE PARTS
Part Number465568
CategoryBrakes
