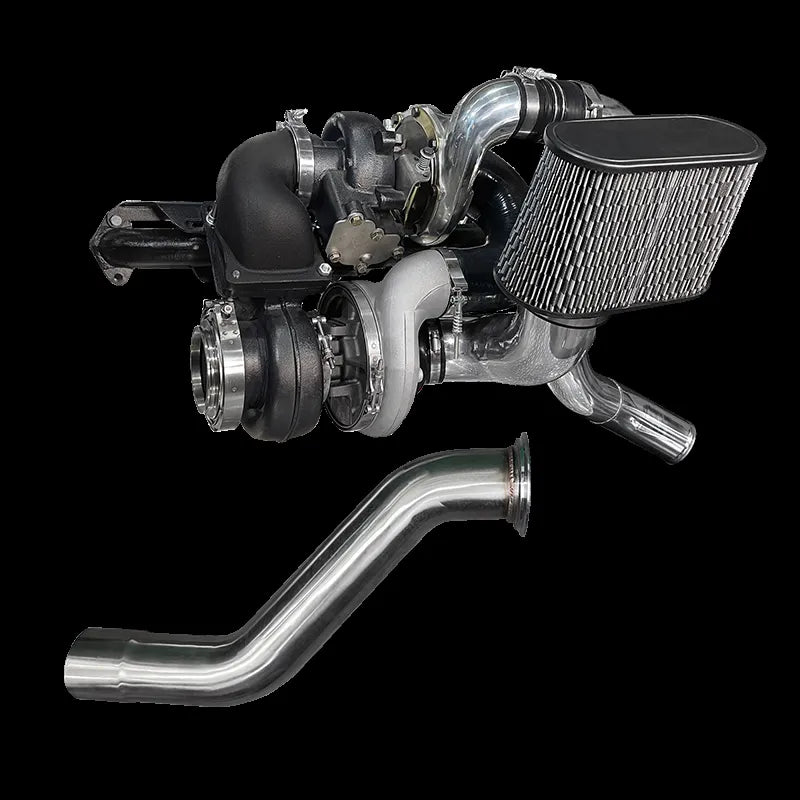

Diesel Power Source Compound Turbo Kit Stage 6 S363/73/14 - DCT0259

Diesel Power Source Twin/Compound Turbo Kit designed for Racing, Towing, or Sled Pulling, with mild manners and quick spool-up similar to stock while significantly increasing airflow. Features a fast-spooling D-Tech primary turbo (compared to BD & Phat Shaft Turbos, but modified for quicker spool) combined with a large volume S480 for high airflow. Reduces EGTs by 300-500 degrees, making towing easier. Boost pressure typically exceeds drive pressure. Increases horsepower and torque across the entire RPM band, significantly in mid and upper ranges. Designed with CAD/CAM Software and CFD testing. Direct bolt-on application, no cutting or fabrication needed. Uses the stock oil return, eliminating the need for a second return line. Includes the largest air filter on the market. Low pressure charge pipe is silicone with Kevlar liner; high pressure charge pipe is chrome plated aluminum. Small turbo has 180% greater wastegate capacity, with an option for a built-in external wastegate. Cast hot pipe with built-in external wastegate port. Steel braided oil feed lines. Polished D-Tech (small) turbocharger. S480 Large Turbo charger. 3-Piece Pulse manifold included. Support bracket for Lower (Large) Turbo. Adjustable boost pressure. Head studs recommended for boost over 45 psi, fire rings for over 60 psi. Capable of well over 70 psi, adjustable to below 65 psi. Kit includes: Air Filter, Cast Iron Elbow, Support Bracket, 3-Piece Manifold, 2 Rubber Inlet Air Tubes, Silicone/Kevlar Charge Pipe, Chrome Plated Aluminum Charge Pipe, 1-D-Tech Turbo, 1-S480 Turbo, 1-D-Tech 64 Turbo, 2-Steel Braided High Temp Oil Supply Lines, 2-Oil Drain Lines & Fittings, Turbo Gaskets, Oil Line Adapters, Mounting Bolts, Exhaust Adapter, V-Band Clamps, High Torque T-Bolt Clamps, Low Torque Clamps, Installation Instructions. 1-Year, 1-Time, Limited Warranty on Turbos.
