DIFFERENTIAL REBUILD KIT

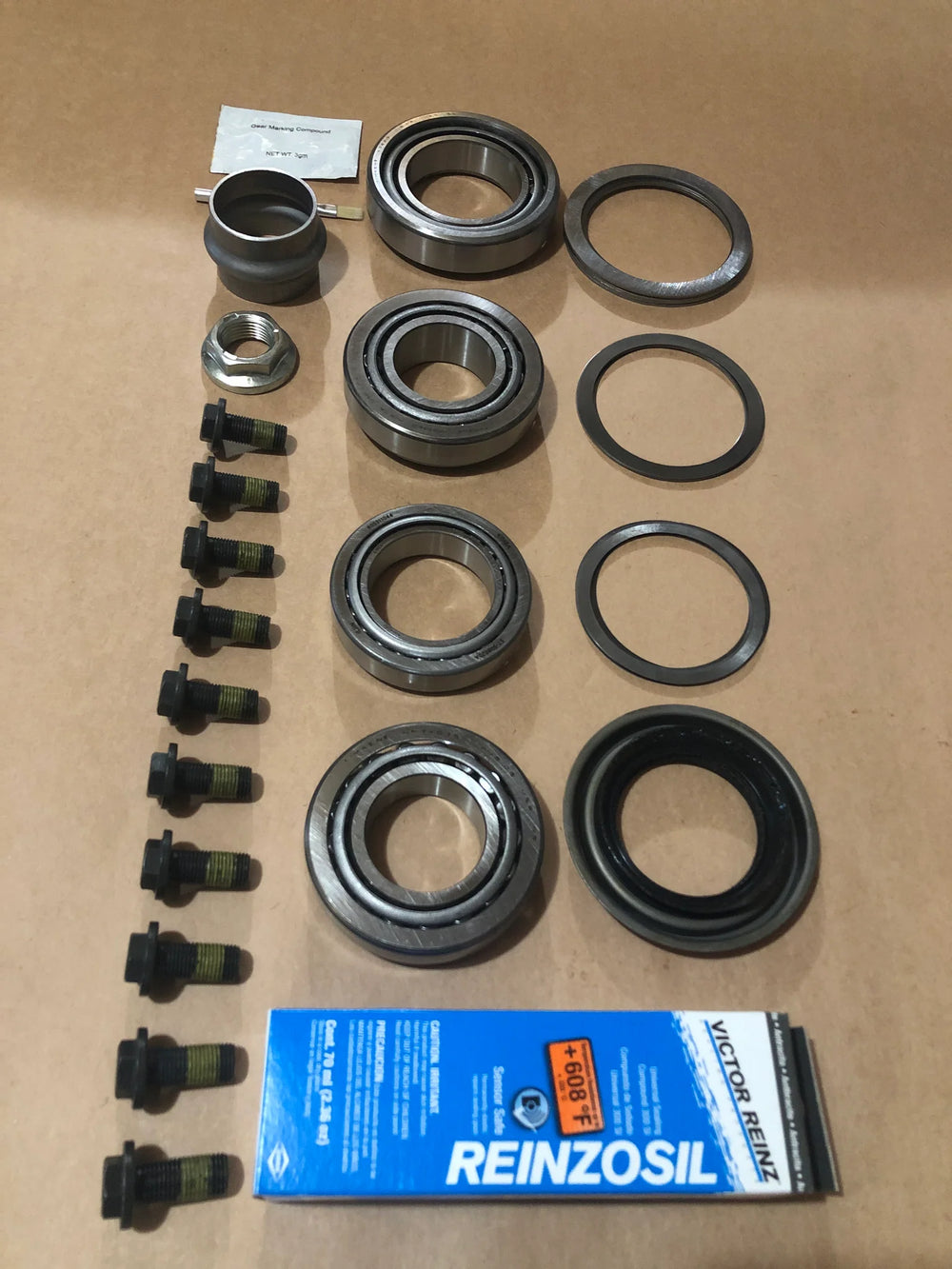

Master Overhaul Kit for the Ford Bronco-M210 FDU (front drive unit) master differential. Genuine Spicer master differential overhaul kits include all the latest production upgrades, ensuring the parts are as good as, or better than, the original. This comprehensive kit provides everything needed for a thorough and lasting repair. Parts included: (2) differential carrier bearings, (1) ring gear side set (Timken K382S bearing race/cup, Timken K387A bearing/cone), (1) non-ring gear side set (ILJIN ST-508020A bearing race/cup, ILJIN ST-508022 bearing/cone), (1) differential shim kit (Spicer TBD), (1) ring gear side kit (3.140" ID / 3.832" OD), (1) non-ring gear side kit (2.701" ID / 3.078" OD), (1) pinion inner bearing and race (Spicer TBD - Timken NP525706 bearing race/cup, Timken NP223610 bearing/cone), (1) pinion outer bearing and race (Spicer TBD - Timken NP740350 bearing race/cup, Timken NP655425 bearing/cone), (1) pinion depth shim kit (2.875" ID / 3.416" OD), (10) ring gear bolts (Spicer 10008806 - Class 12.9 hardware strength, M12X1.25, 26MM under the head, dry thread locker applied, flanged, 15MM hex socket size), (1) pinion crush sleeve, (1) pinion seal (Spicer TBD - SHR3 54 85.9 17F), (1) pinion nut (Spicer 2009625 - TBD thread size, 1-1/4" or 32MM hex socket size, swaged distorted thread lock nut, flanged), (1) tube of RTV sealant, (1) packet of gear marking compound, (1) gear marking compound application brush. Note: Differential oil seals are NOT included in this kit.
