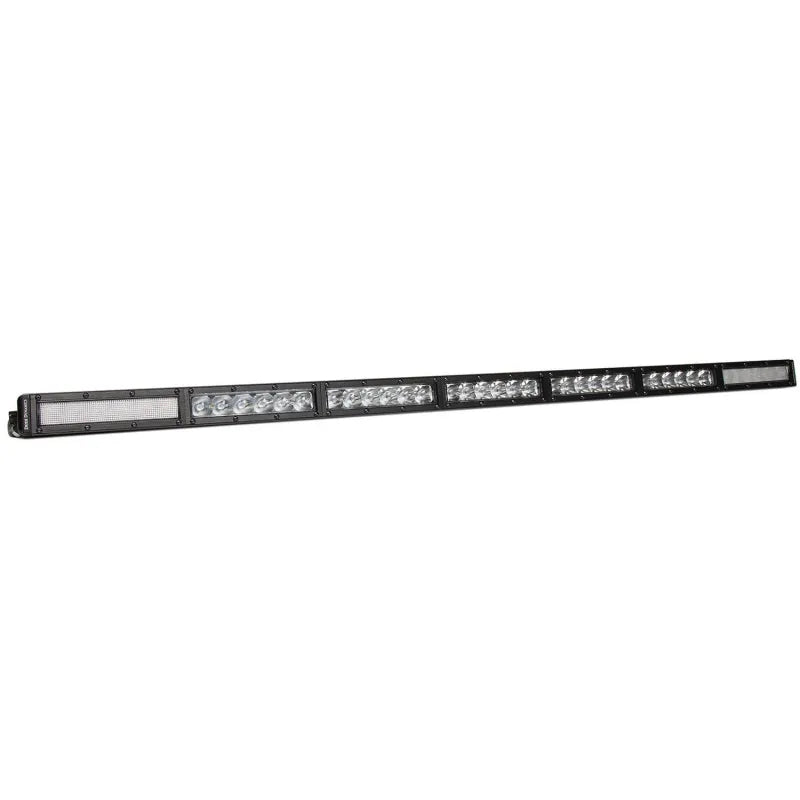

Diode Dynamics 42 In LED Light Bar Single Row Straight Clear Combo Each Stage Series

Discontinued item: Includes a 30-day warranty and is not eligible for returns.

Introducing STAGE SERIES LED lighting! Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.

**Compact:** The lightbar is based on a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42mm tall, they'll fit in many places a traditional dual-row light bar won't, while cutting total weight as well. The heatsink design also drastically reduces wind noise, and does not whistle in the wind like many generic housings.

**Focused:** The compact size doesn't mean they're short on power! Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally, and to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

**Functional Pattern:** All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 42" Combo Light Bar features five driving lenses in the middle with two flood lenses on the outer edges.

**Change it up:** Each lightbar is based on 6-inch segments. Each segment is sealed with an individual lens and a double-wall seal. This makes them more weather tight than a large, single seal, and it also allows you to change up the outer lens to suit your needs.

**Simple connections:** All Stage Series LED lighting products use a standard DT type Deutsch-style connector, and come with a 6-inch pigtail, with bare leads.

**Proven Reliability:** Stage Series lighting has been tested for long-term operation from -40 to 185 degrees F, vibration, moisture intrusion, and corrosion. All of these tests are completed to SAE/DOT standards, just like factory components.

**What's Included:**
* One (1) LED light bar
* One (1) wire pigtail
* Universal bracket set
* Two (2) M6 Hex Screws, for main mounting point
* Two (2) M5 Hex Screws, for rear mounting point
