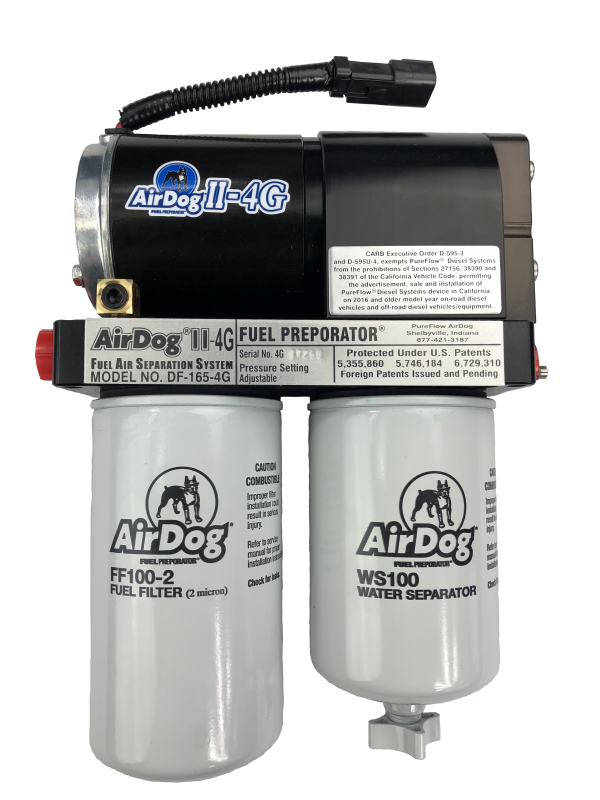

DODGE 5.9L/6.7L 24V CUMMINS AIRDOGII4G AIR FUEL SEPERATION SYSTEM

This is the AirDog® II-5G DF-165-5G fuel system for the 2004.5-2018 Dodge Ram Common Rail Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2\" bulkhead fitting. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing. The AirDog® Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks.
