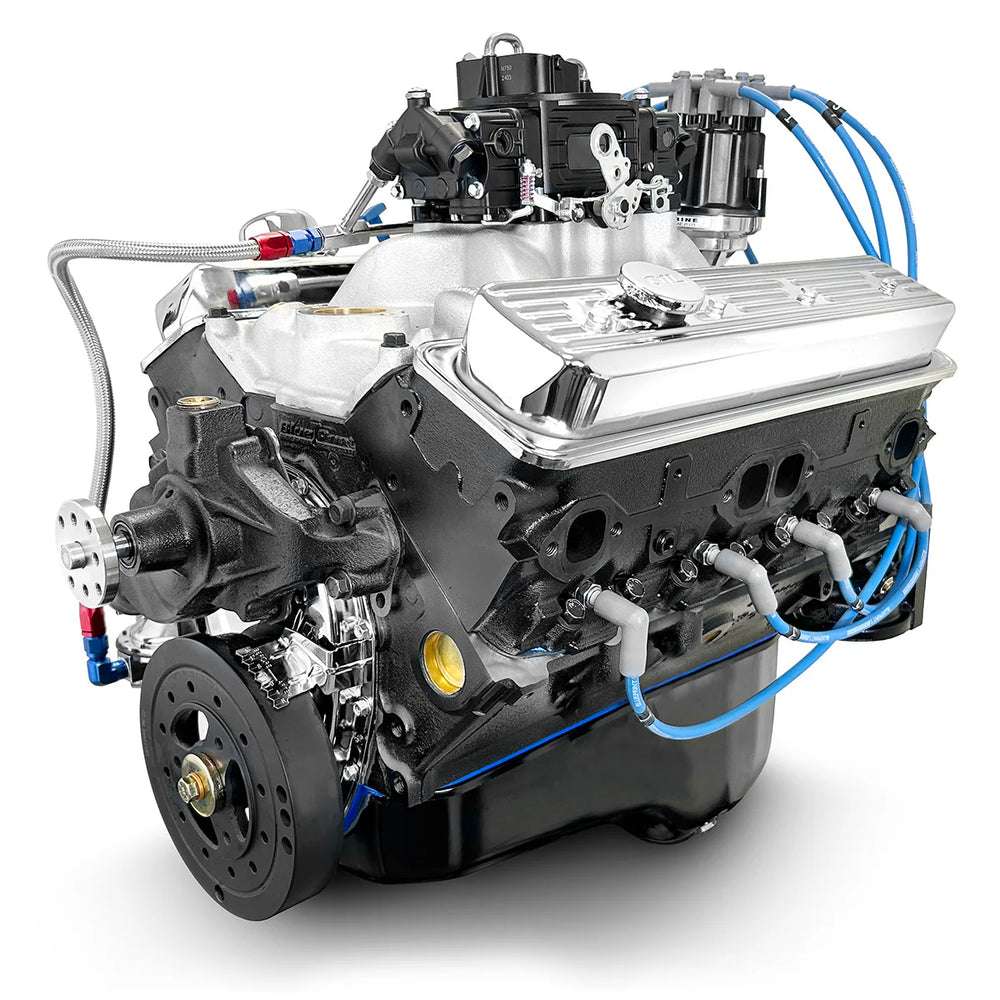

DRESSED LONGBLOCK W/ CARB

Horsepower & Torque: 350 Horsepower / 400 FT LBS
Compression Ratio: 9.5:1
Cast Iron Heads
Hydraulic Roller Cam
Cast Crankshaft
Hypereutectic Pistons

Block:
BluePrint Engines High Strength Cast Iron Block
Square and Parallel Decked
Align Honed Main Bearing Bore
Cylinders Honed on Computer-Controlled Machine to Within .0002 Straightness and Roundness
Cylinders are Sonic Tested for Thickness
4-Bolt Main
4.000" Bore
1-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick Drilled and Tapped for Clutch Linkage

Rotating Assembly:
Cast Crankshaft
3.480" Stroke
OEM Type 5.700" Connecting Rods
Hypereutectic Pistons
Internal Front/ External Rear Engine Balanced

Cylinder Heads:
Vortec Cast Iron Cylinder Heads
1.94 Intake Valves
1.50 Exhaust Valves
Hardened Push Rods
Long Slot Rockers with Positive Lock Adjusting Nuts

Cam Specs:
Hydraulic Roller Cam
.480 Intake / .489 Exhaust Lift
218 Intake / 224 Exhaust Duration
@.050-112 Degree Lobe Separation

Also Includes:
Marine Intake Manifold
Valve Covers
Marine Carburetor (Brand will vary due to supply)
Distributor
Oil Pan

Notes:
This engine is designed for CARBURETED use only. It is NOT for use in any factory fuel injected applications.
Replaces Standard Rotation engines only. Not available as reverse rotation.
BluePrint Engines recommends the use of a flame arrestor in marine applications and advises checking local laws to ensure compliance with the United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
