DRIVESHAFT

The Dana Spicer 170DS55011C-654M is an SPL170 series welded steel driveshaft assembly designed for heavy-duty vehicle applications. This high-performance component is built to exacting Dana Spicer standards for structural integrity and reliable torque transfer in demanding commercial environments.

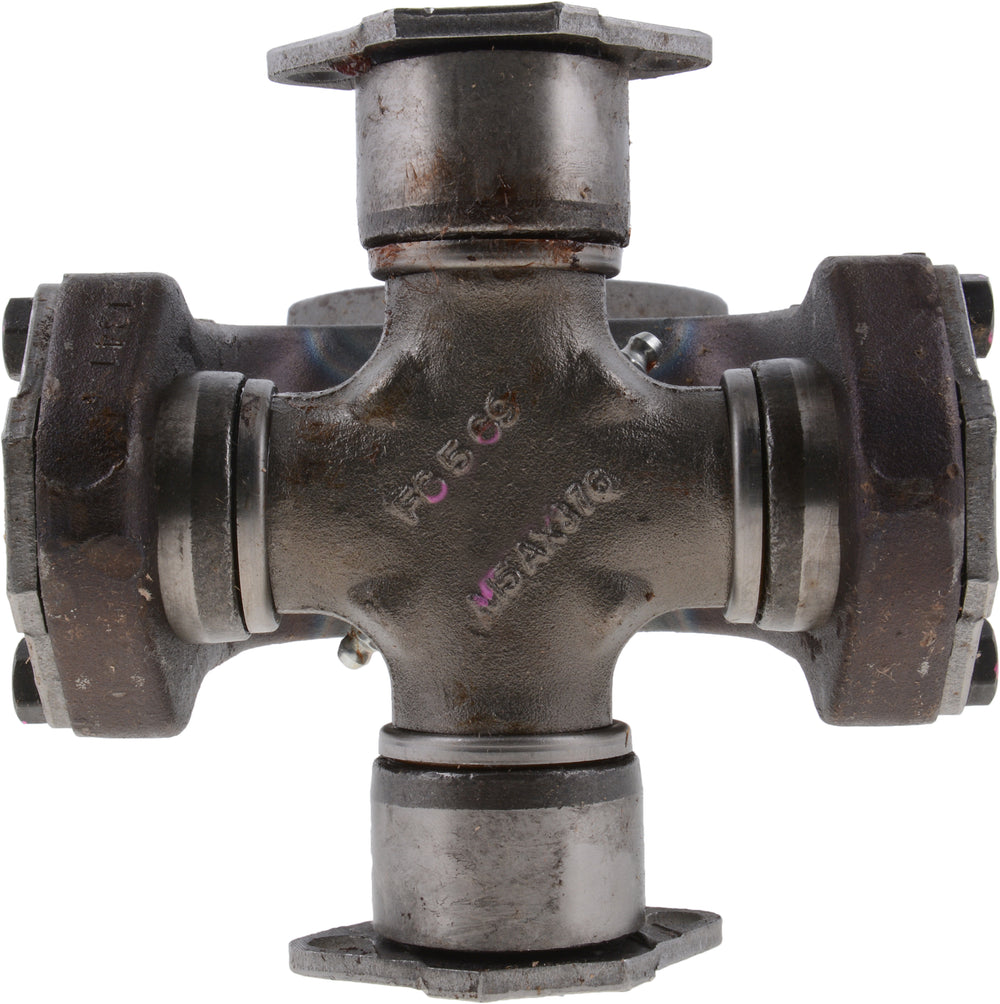

The driveshaft features a tube diameter of 5.06 inches with a wall thickness of 0.167 inches, providing a robust construction suitable for industrial use. It comes pre-equipped with two SPL170 series universal joints, ensuring comprehensive compatibility and ease of integration into existing driveline configurations.

Key measurements include a collapsed center-line yoke to center-line yoke length of 40.3543 inches and an installed length of 42.5197 inches. The tube length is 25.7480 inches, with a total allowable slip of 4.3307 inches and a mid-slip setting of 2.1654 inches. It is rated for a maximum joint angle of 25 degrees.

Due to the nature of industrial driveshaft assemblies, this part is dimension-specific rather than application-specific. It is intended for custom or replacement driveline configurations that match these technical specifications. Professional installation by a driveline technician is recommended to ensure correct alignment and phasing.
