DRIVESHAFT

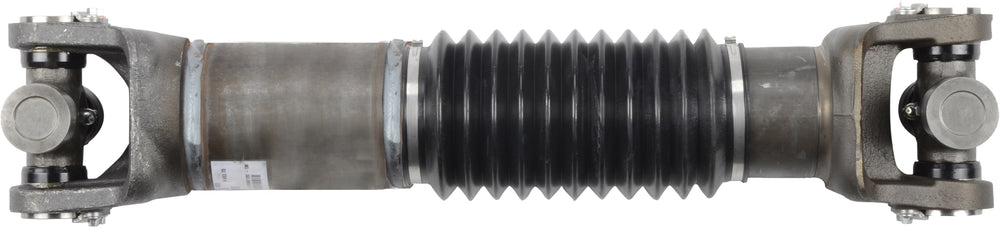

The Dana Spicer 250DS55003C series encompasses heavy-duty driveshafts designed for commercial vehicle applications. The `DB250D55003C` is a "Ready Pack Driveshaft Kit" by Dana Spicer, offering a comprehensive solution for repairing, rebuilding, or constructing a new SPL250 series spline and slip driveshaft. This kit includes essential components such as SPL250-3X Universal Joints, a 250-28-17 Weld Yoke (designed for 5.118" OD - 0.197" wall tubing), a 250-82-21X Yoke Shaft, a 250-55-31X Slip Sleeve (also for 5.118" OD - 0.197" wall tubing), and a 211959X Boot. It's important to note that the tubing itself is not included in the kit. Dana emphasizes the use of genuine Spicer parts, highlighting their USA manufacturing, rigorous design, engineering, and testing to ensure superior performance. Specific variants, like the `250DS55003C-170M`, denote particular lengths and configurations within this series.
