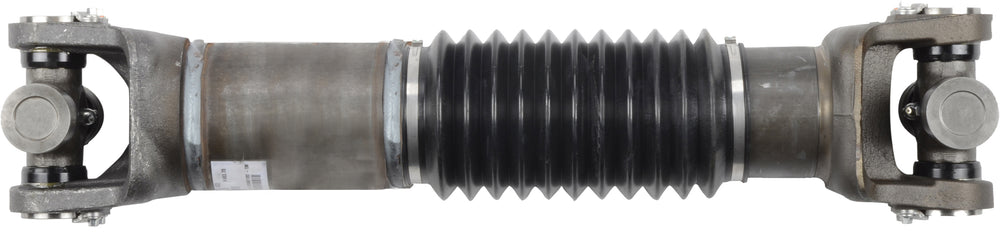

DRIVESHAFT SPL250 LITE

The Dana Spicer SPL 250 Lite Driveshaft (MPN: 250DS85001F-1260MR) is an advanced, lightweight driveshaft designed specifically for heavy-duty commercial truck applications. It is part of Dana's renowned SPL series, optimized for the most popular configurations found in linehaul and vocational segments. This driveshaft boasts a robust construction capable of handling torque ratings up to 25,000 Nm (or over 18,000 lbs.-ft.), ensuring reliable power transmission under demanding conditions. A key feature is its innovative one-piece midship assembly, which significantly reduces the overall component count by 10 (from 17 in traditional designs to just 7). This design not only simplifies maintenance and inventory but also contributes to a weight reduction of up to 35 pounds compared to competitive products, enhancing fuel efficiency and vehicle dynamics. The SPL 250 Lite is engineered for superior noise, vibration, and harshness (NVH) performance, achieving a balanced and smooth operation that improves driver comfort and vehicle longevity. It is also compatible with the lower numeric axle ratios increasingly used for engine downspeeding.
