DRIVESHAFT XL

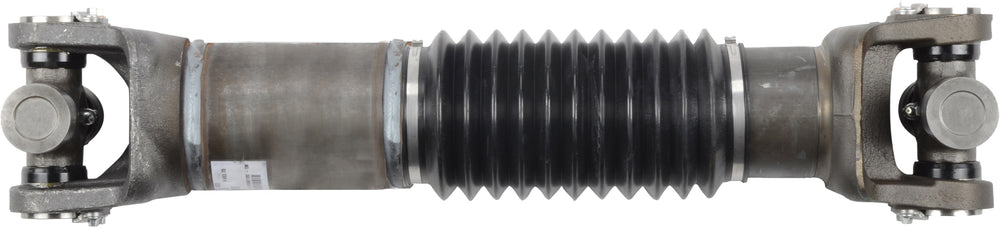

The Dana 250DS55003C-320M is a heavy-duty driveshaft designed for commercial vehicle applications. This genuine Spicer component is manufactured in the USA, ensuring high quality and performance. It is supplied with all necessary components for repair and replacement.

Dana's comprehensive design, engineering, testing, and manufacturing processes contribute to its unparalleled performance, distinguishing it from non-genuine alternatives. While specific vehicle fitment is based on dimensional compatibility for heavy-duty commercial vehicles rather than specific year, make, and model, some specifications for a similar model (250DS55003C-170M) are available.

Key dimensions for the 250DS55003C-170M variant include a CL Yoke to CL Yoke (Collapsed) of 551mm (21.6929 inches) and a CL Yoke to CL Yoke (Installed) of 606mm (23.8583 inches). The tube length is 170mm (6.6929 inches) with a size of 130mm x 5.00mm (5.12 x .197 inches). It features SPL250 series U-joints, with two universal joints included. The driveshaft has a maximum slip of 110mm (4.3307 inches) and a mid-slip of 55mm (2.1654 inches). The shaft material is steel, and it is a welded assembly with a 0-degree phased U-joint style.

This driveshaft is designed for robust performance in demanding heavy-duty environments, offering reliability and durability through genuine Spicer engineering. It is intended for professional installation and maintenance in commercial truck and heavy equipment applications.
