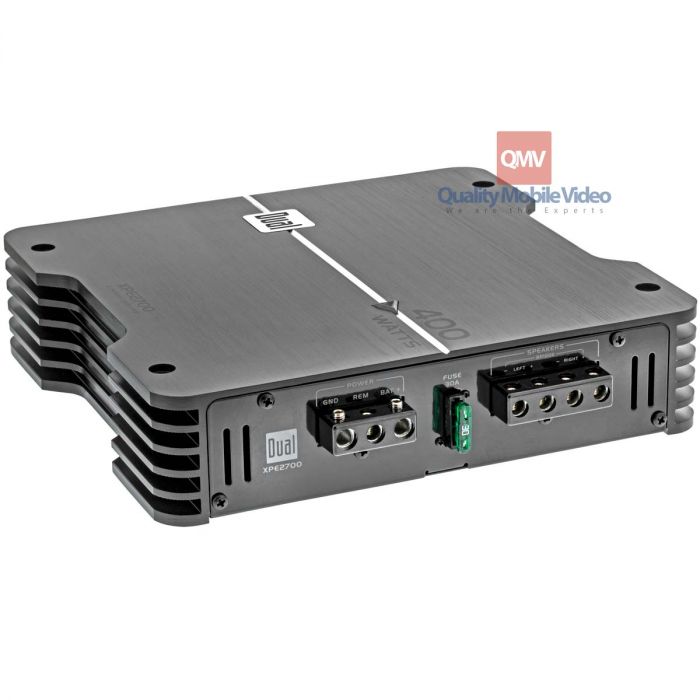

Dual 2-Channel 50W RMS Class AB Mobile Power Amplifier

The Dual XPE2700 is a 2-channel Class AB mobile power amplifier engineered for car audio systems. It provides 50 Watts RMS x 2 channels @ 4 ohms, with a dynamic peak power of 400W. The amplifier includes adjustable controls for input level (gain), sub-sonic filter, and crossover frequency. It also features selectable bass boost at 0, 6, and 12 decibels at 50Hz, and a phase control. The LED indicator signals normal operation (blue) or fault/protect mode (red). Installation requires careful routing of power, ground, and remote turn-on wires. A suitable fuse must be installed on the +12V lead within 18 inches of the battery for vehicle electrical system protection. The recommended wire size for the XPE2700 is 10 AWG. Amplifier installation kits are highly recommended and sold separately. Professional installation by a qualified technician is strongly advised due to the technical nature of amplifiers. Avoid mounting the amplifier where it will be exposed to moisture, dust, dirt, or excessive vibration, ensuring at least 1" of space around all sides for airflow. The minimum impedance load for the XPE2700 is 2 ohms stereo or 4 ohms bridged; using loads lower than these is not recommended and may cause damage. The amplifier can be wired for stereo, bridged, or simultaneous stereo/bridged operation. Use of passive crossovers is required for simultaneous stereo/bridged mode; consult a professional for recommendations if needed.
