Gaskets and Seals› Engine Gaskets and Seals

Merchant Automotive

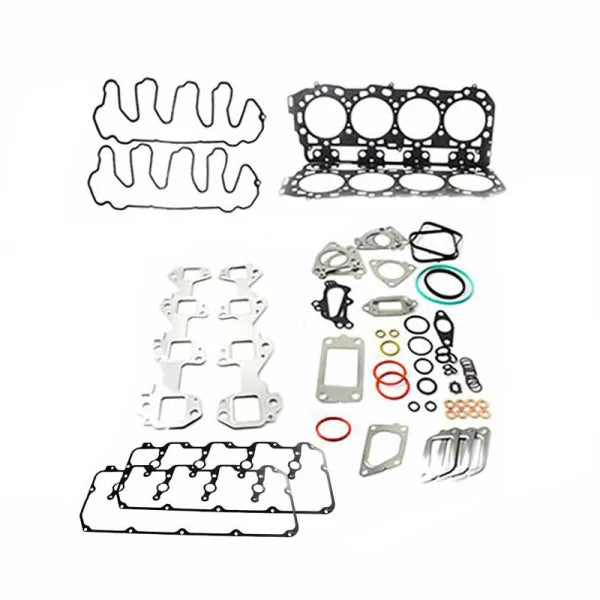

Duramax Head Gasket Kit - LML Grade C Gaskets OEM Bolts

Name: Duramax Head Gasket Kit - LML Grade C Gaskets OEM Bolts
Brand: Merchant Automotive
SKU: M01D 450401C
Price: 610.96 USD
Availability: InStock

$610.96

SKU: M01D 450401C

Special Order

Ships in 4–6 weeks

Free Shipping over $200

$100 Minimum Order

Non-Returnable Item

DIY PRO SHOP

Advanced — 4+ hours

Overview

This comprehensive kit from Merchant Automotive is designed for replacing blown head gaskets or rebuilding a GM Duramax LML diesel engine (2011-2016). It includes a wide variety of OE-style and upgraded gaskets and seals to ensure that the LML gaskets perform as well as the factory gaskets did. Kit Includes: OE-Style Head Bolts, Grade C Head Gaskets, (1) - Injector Copper, LLY LBZ LMM LML, 2004.5+, Pack of 8, (1) - LML Injector Body Seal, 2011+, 8 Pack, Duramax, (1) - LML Injector Fuel Return Line Seal, 2011-2016, 8 Pack, Duramax, (1) - EGR Coolant Pipe Drain Seal, LML LGH, 2011-2016 Duramax, (2) - Upper Valve Cover Gasket, LML LGH, 2011-2016 Duramax, (1) - PCV Valve Seal, LML, 2011 Duramax, (1) - Upper Bypass Pipe Seal at Thermostat Housing, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax, (1) - Bypass Pipe Seal, LB7 LLY LBZ LMM LML, 2001-2016 Duramax, (2) - Oil Level Indicator Tube Seal, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax, (2) - Gasket - Exhaust Manifold To Up Pipe, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax, (2) - Gasket - Turbo To Up Pipe, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax, (2) - Intake Y Bridge Gasket, LBZ LMM LML LGH, 2006-2016 Duramax, (1) - RTV Sealant, High Temp, Aluminum, 2.8oz LB7 LLY LBZ LMM LML, L5P 2001-2019 Duramax, (1) - Fuel Feed Pipe Gasket, LML LGH, 2011-2016 Duramax, (2) - Thermostat Housing Crossover At Head Gasket, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax, (1) - Turbo Oil Feed Pipe Gasket, At Engine, LML LGH, 2011-2016 Duramax, (1) - Upper Intake Y Bridge Seal, LML, 2011-2016 Duramax, (1) - Turbo Mouthpiece Inlet Seal, LML LGH, 2011-2016 Duramax, (2) - EGR To Y Bridge Gasket, LML LGH, 2011-2016 Duramax, (1) - Oil Fill Tube Seal, LB7 LLY LBZ LMM LML, 2001-2016 Duramax, (2) - EGR Valve Gasket, LML LGH, 2011-2016 Duramax, (1) - Up Pipe To EGR Gasket, Cooler Bypass, LML, 2011-2016 Duramax, (1) - EGR Valve Cooler Gasket, LML, 2011-2016 Duramax, (1) - EGR Valve Gasket, Between EGR Cooler Assembly, LML, 2011-2016 Duramax, (1) - EGR Recirculation Pipe Gasket, LML, 2011-2016 Duramax, (2) - Exhaust Manifold Gasket, LB7 LLY LBZ LMM LML LGH, 2001-2016 Duramax, (2) - PCV Drain Ventilation Hose Fitting Seal, Hose Side And Block Side, LML LGH, 2011-2016 Duramax, (1) - Turbo Oil Return Pipe Gasket At Engine, LML LGH, 2011-2016 Duramax, (1) - PCV Oil Separator Seal, LML LGH, 2011-2016 Duramax, (2) - PCV Valve Seal, LML, 2012-2016, Turbo Resonator, LML, 2011-2016 Duramax, (2) - Lower Valve Cover Gasket LLY LBZ LMM LML

Show original supplier description

Duramax Head Gasket Kit - LML Grade C Gaskets OEM Bolts

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

Brand	Merchant Automotive
Part Number	M01D 450401C

Videos

How to install the seals on a Duramax Engine

Product Spotlight: Duramax Oil Cooler Seal and Gasket Kits, 2001-2016

How-to replace & rebuild the diesel fuel filter head on a Duramax engine.

Product Spotlight: Allison Pass Through Connector Seal
