Dynamics Fuel

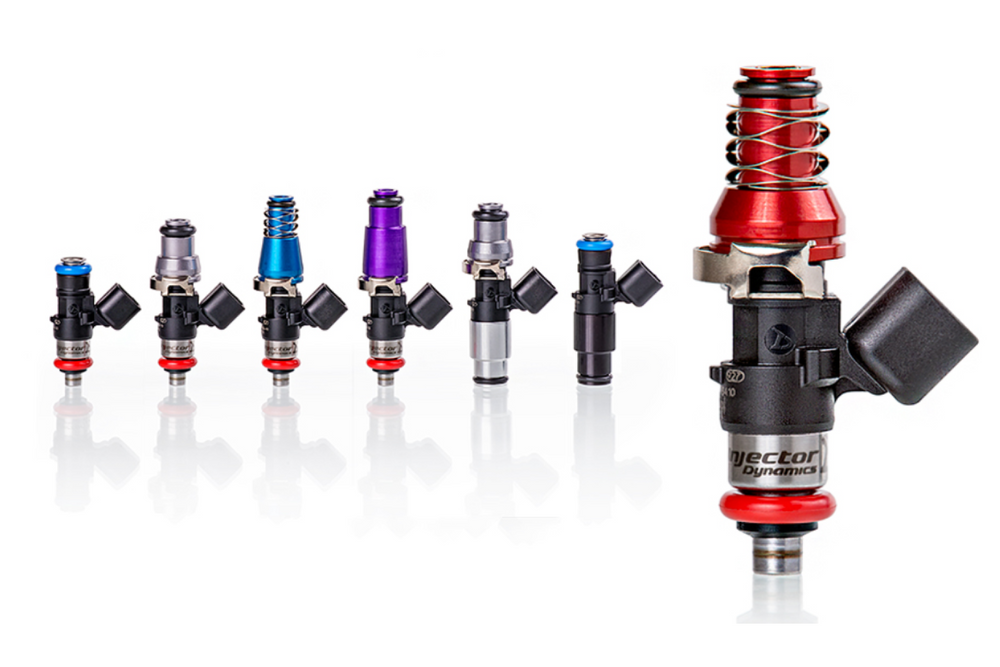

The Injector Dynamics ID1700x fuel injector is a high-performance component developed in collaboration with Bosch Motorsport. It is engineered to offer a flow rate between the ID1300x and ID2000 injectors, providing a versatile option for demanding engine builds. The injector's robust construction includes corrosion-resistant internals, ensuring compatibility with a wide range of automotive fuels such as E85, methanol, ethanol, and all known hydrocarbon fuels. A key feature of the ID1700x is its advanced magnetic circuit, which eliminates the voltage and pressure sensitivity problems often found in other high-impedance, high-flow injectors. This design allows the injector to operate reliably under the high fuel pressures common in modern automotive applications. It is particularly well-suited for delivering E85 to boosted engines or for gasoline applications requiring extremely high horsepower. Specifications for the ID1700x include a nominal flow rate of 1725cc/min at 3.0 Bar (43.5 psi) using Iso-Octane at 52 Degrees C (125 Degrees F). The maximum differential fuel pressure it can handle is 7.0 Bar (101.5 psi). The electrical connector type is USCAR, and it operates with a 12V saturated circuit driver. While the ID1700x excels at providing precise fuel mixtures on E85, it is not optimized for precise low-flow gasoline operation, similar to the ID2000. It is critical not to purchase single or partial quantity replacement injectors for an existing set, as they will not be flow-matched and could lead to driveability issues or engine damage. Injector Dynamics recommends following their specific cleaning procedure for existing injector sets if a replacement is suspected to be necessary.
