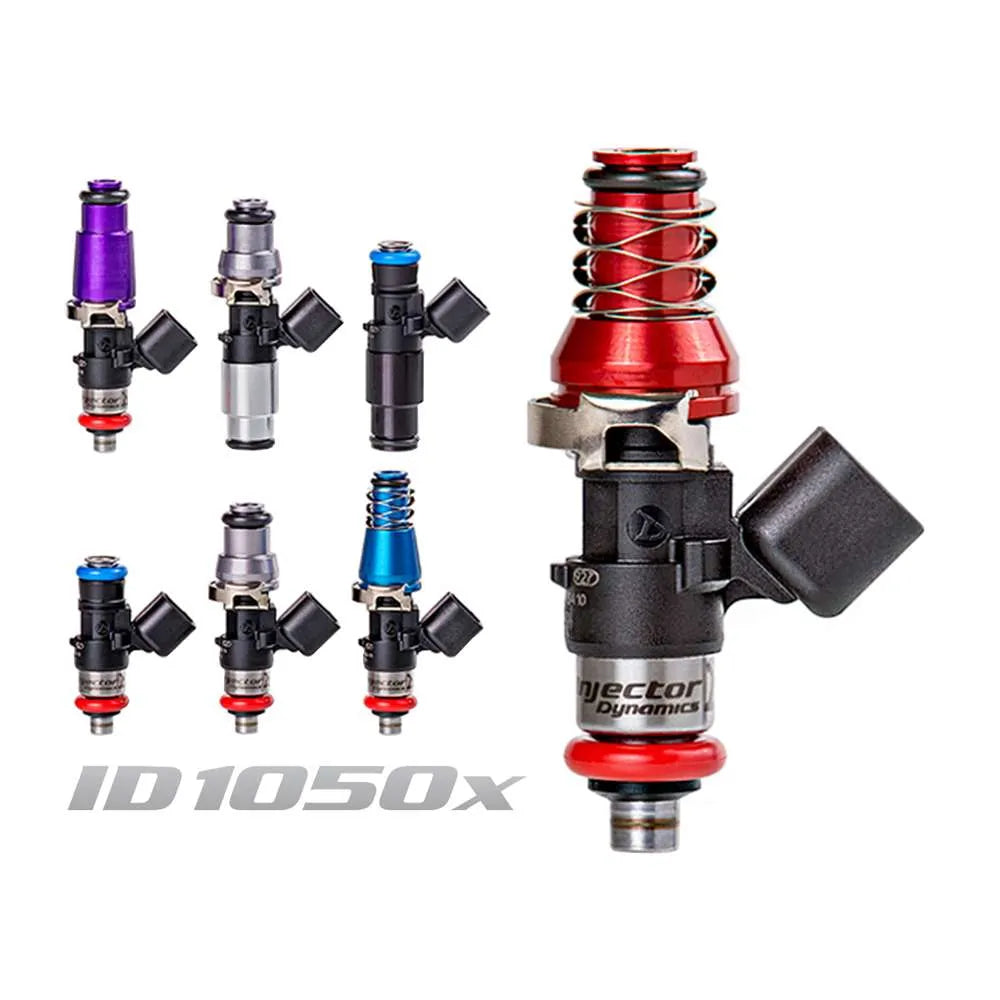

Dynamics ID1050X 1050cc Fuel

The Injector Dynamics ID1050X, also known as the ID1050-XDS, is a highly versatile and reliable fuel injector ideal for modern naturally aspirated or forced induction engines. These injectors are engineered to work seamlessly with any gasoline or alcohol-based fuel, including E85 and flex fuel, without corrosion issues. The XDS series is built to safely operate at significantly higher pressures than other injectors on the market, making them perfect for demanding high boost applications. Key features of the ID1050X injectors include a nominal flow rate of 1065cc/min at 3.0 Bar (43.5 psi) and a maximum differential fuel pressure of 10.0 Bar (145 psi). They utilize a USCAR electrical connector and feature a replaceable inlet filter for extended service life. Designed in partnership with Bosch Motorsport, these high-impedance injectors do not require separate drivers or resistors. They offer excellent low pulse width response, linearity within 1-2% down to 1.5-2ms, and unmatched consistency, ensuring easy tuning and accurate compensations. These injectors are recommended for builds aiming to produce 80-120HP per injector. The specific part number 1050.11.03.60.11 is listed for use with Mazda RX-7 79-84 models utilizing 11mm fuel rails, as primary or secondary injectors.
