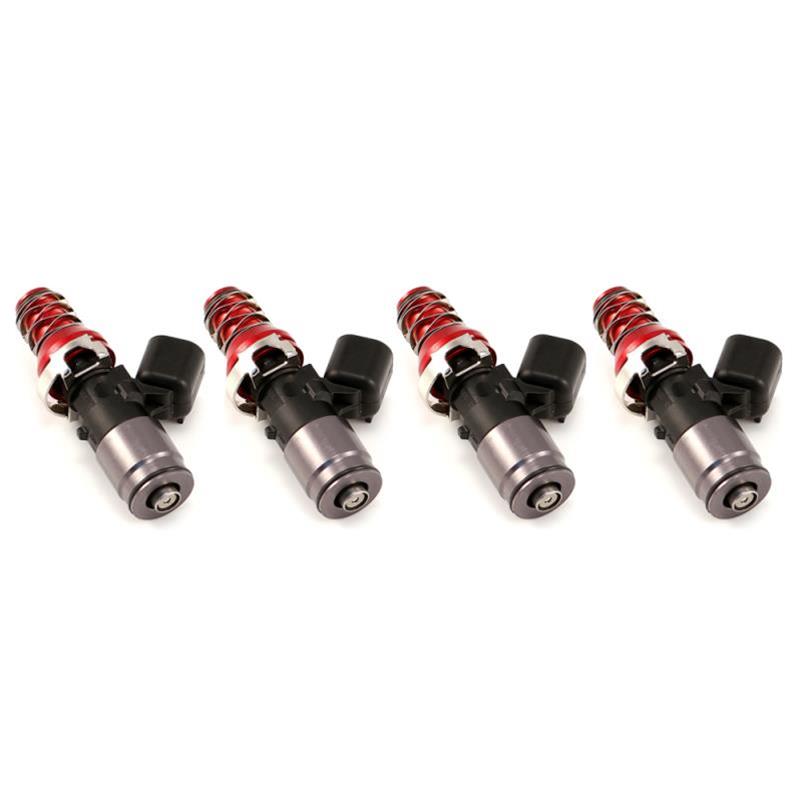

Dynamics ID2600-XDS Electronic Fuel

The Injector Dynamics ID2600-XDS set represents the latest advancement from the collaboration between Injector Dynamics and Bosch Motorsport, specifically engineered for high-performance applications. These injectors are built with corrosion-resistant internals and are formulated for reliable, long-term use with ethanol and methanol fuels, as well as all known hydrocarbons. With a nominal flow rate of 2600cc/min at 3.0 Bar (43.5 psi), the ID2600-XDS offers a 50% increase in flow over the ID1700x, making it the highest-flowing injector available from Bosch. The system incorporates Dual Slope Matching, a sophisticated method developed by Injector Dynamics to ensure precise fuel delivery across the entire operating range, including both linear and non-linear pulse width scenarios. This technology significantly improves cylinder-to-cylinder fueling consistency, even at very low pulse widths, leading to better engine control and drivability. Key specifications include a maximum differential fuel pressure of 9.0 Bar (130.5 psi), requiring a minimum of 11 volts for operation. The electrical connector type is USCAR. While compatible with a wide range of fuels, it is explicitly NOT compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane. The product is supplied as a set of eight injectors and is noted for its use with GM LS1/LS6 engines, though other applications such as 1997-2010 Mustang GT, C5 Corvette, and Ford SVT Lightning are also mentioned.
