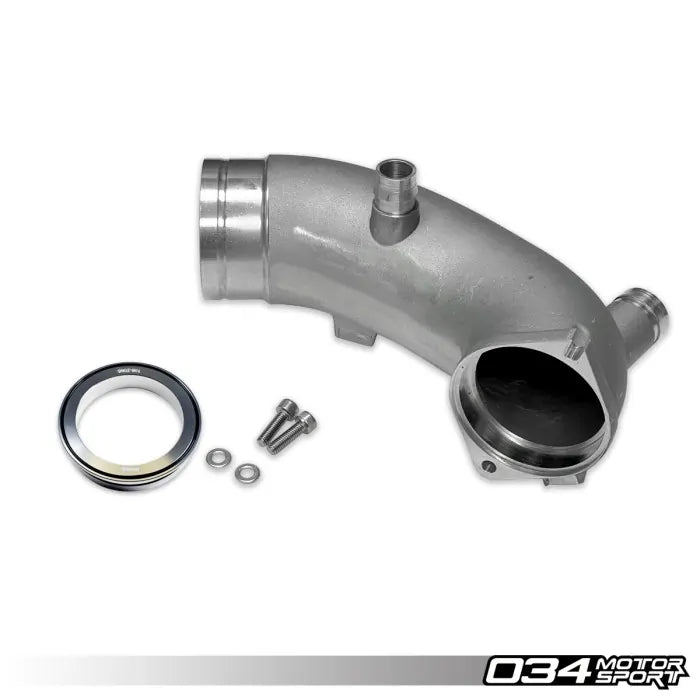

EA839 3.0T Turbo Inlet Pipe

The 034Motorsport Turbo Inlet Pipe for the EA839 3.0T powered Audi S4/S5/SQ5 is an essential upgrade engineered to optimize power by eliminating a critical flow restriction in the intake tract. This pipe is constructed from cast A356 Aluminum and features a CNC machined 6061-T6 aluminum turbo inlet adapter for smooth airflow into the compressor housing. This turbo inlet pipe offers increased flow over the factory component, with tested figures showing 396 CFM @ 28"H²O for the stock turbo inlet, increasing to 432 CFM @ 28"H²O with the 034 Turbo Inlet Pipe and stock turbo adapter. An optional adapter ring for Pure750 turbochargers is available separately (034-108-Z094), which yields an airflow of 490 CFM @ 28"H²O. The design includes a slotted lower turbo inlet bolt for easier installation. This product is designed to maximize performance for Dynamic+ Stage 1, 1+, 2, & 2+ Stock Turbo Tuning Software. For upgraded turbochargers, the SüperDüper Turbo Inlet is recommended. Please note that this 034Motorsport Turbo Inlet Pipe is not compatible with the SüperDüper S34 Carbon Fiber Intake Systems. Installation effort is rated as mild and should take approximately 1 hour to complete.
