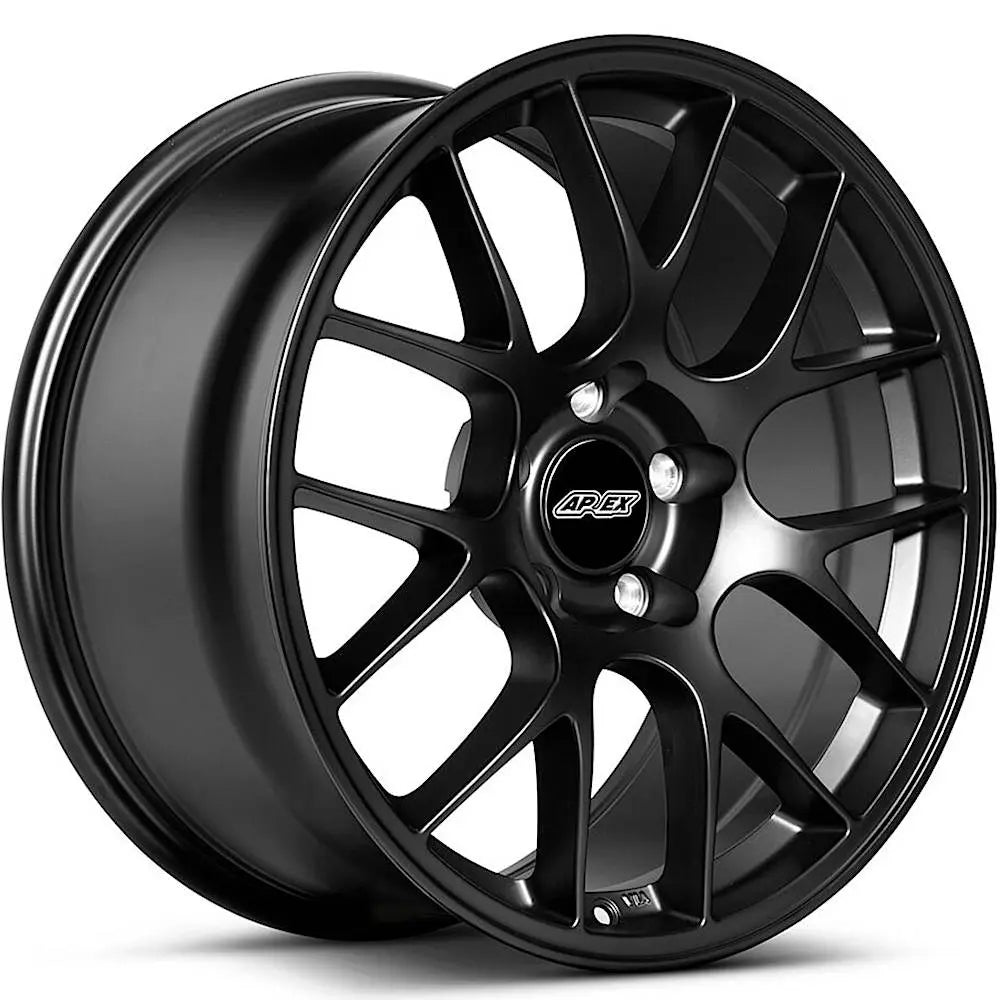

EC-7 19x9.5 Satin Black

The APEX EC-7 is a high-performance 19x9.5 inch alloy wheel, finished in Satin Black, designed for both street and track use. Its specifications include a 22mm offset, a 5x120 bolt pattern, and a 72.56mm center bore. APEX employs a flow forming process for the EC-7, which improves the barrel's mechanical properties and grain structure. This results in increased strength and stiffness, allowing for a lighter overall weight compared to traditional cast wheels, yet with a higher load rating than some competitors' forged wheels. The wheel's design prioritizes big brake clearance, accommodating substantial brake calipers that might otherwise require larger diameter wheels. It features up to three distinct concave face profiles, chosen to maximize concavity while maintaining critical clearances, contributing to a visually aggressive stance and further weight reduction. Extensive Finite Element Analysis (FEA) was used to optimize the EC-7's structure, reinforcing high-stress areas and removing material where strength was not compromised, resulting in an exceptionally light yet strong wheel. The multi-stage liquid paint finish over a powder-coated base ensures durability and maintains proper fit and torque values by leaving lug holes, center bores, and mounting pads untouched. All APEX wheels meet or exceed JWL load rating requirements and are certified by VIA, an independent testing agency. The EC-7 is hub-centric for specific vehicle applications, minimizing the need for centering rings. It includes a gloss black center cap compatible with OE caps and can be used with OEM mounting hardware, aftermarket hardware, and most wheel spacers. It also accepts OEM and aftermarket TPMS sensors.
