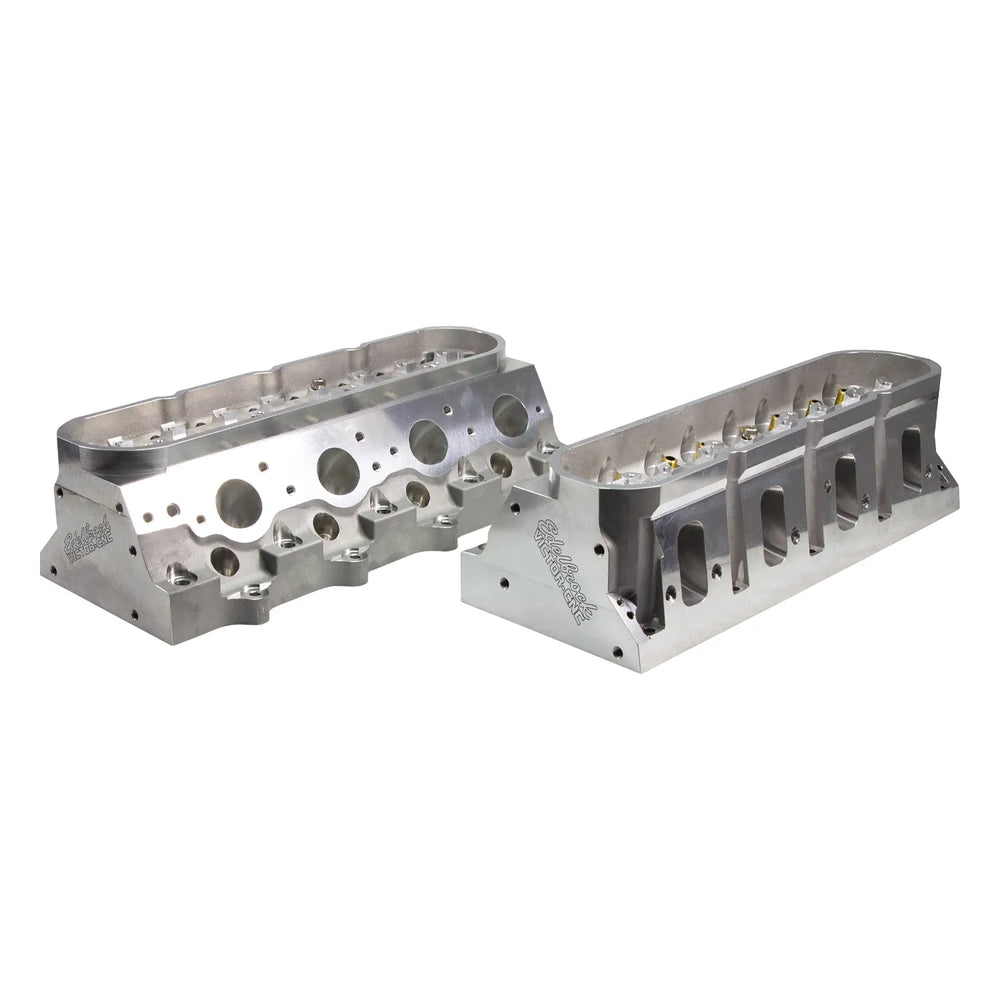

Edelbrock Victor CNC GM LS7 12 Degree 6-Bolt Cylinder Head, 291cc, .220in Int Port, Copper Seat

The Edelbrock Victor CNC 12° 6-Bolt Head for GM LS7 291cc/69cc Individual #77689 is designed for maximum effort naturally aspirated and boosted applications. It features .220” raised intake runners and .100” raised exhaust ports that provide a better line of sight into the cylinders and allow for an improved short turn. The raised intake runner design fits both stock and aftermarket LS7 intake manifolds and can be used with stock or aftermarket valve trains. The head utilizes the GM LS 6-bolt design, making it compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and improves head gasket sealing – ideal for high compression naturally aspirated engines and high boost applications. Features include a 12-degree valve angle and fully CNC-machined ports for maximum airflow. CNC-machined runners and chambers, as well as the .220” raised intake ports and 12-degree valve angle, increase overall flow capability, while a revised water jacket design enhances thermal conductivity and tunability. The manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700” thick deck and .400” raised valve cover rail make this head ideal for maximum horsepower and high valve lift applications.
