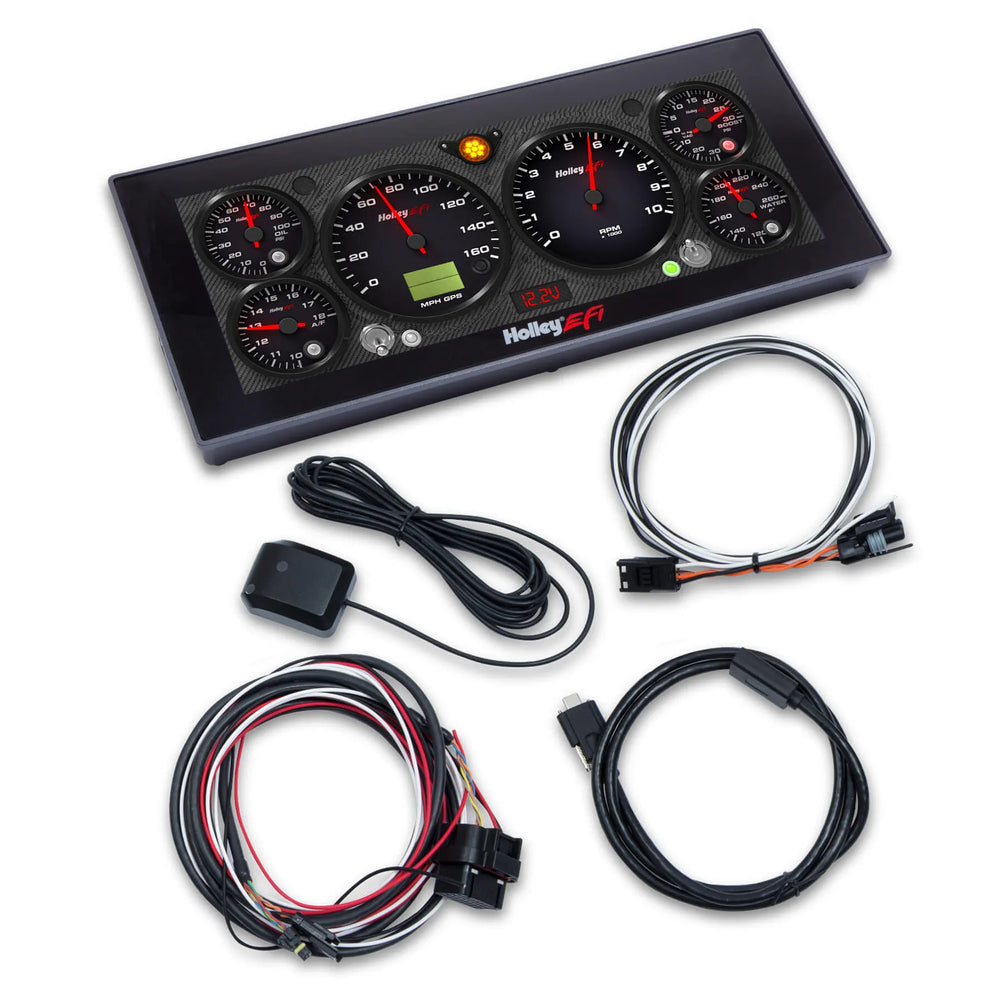

EFI Pro Digital Dash w/ 6.86in Screen

Part #: 553-112

Holley's new 6.86" Pro Dash delivers over 200 monitoring channels of reliable real-time data in a more compact, full HD package suitable for nearly any motorsports application.

Features:

• Plug-and-play Display support for Dominator, HP, Terminator X & Sniper EFI (Not compatible with Sniper 2)
• Integrated a 10-LED Programmable shiftlight w/ 4-LED warning indicators for other sensor inputs.
• Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
• 10 default background skins pre-loaded with unlimited options for importing custom layouts
• Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
• Virtual switch panel eliminates the need for external toggle switches
• Manual or auto-brightness features for easy viewing day or night
• Built-in GPS with odometer function (Antenna included)
• On-screen datalog playback features allows you to review vital run information
• Expandable storage via USB
• No stylus required, capacitive touch, just like your smart phone.
• User definable channel alarms and warnings
• 4x 10-32 mounting holes for surface or flush mounting, with high quality hardware included!
• Includes everything needed for installation!
• USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
• Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
• Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs.
• User defined alarms for any input
• Upgradable with future software enhancements
• Viewing area is 6.86" on the diagonal
• Dash weight - 1.2 Lbs
• Real-time ECU tuning - HP/Dominator ECUs only

The Holley EFI 6.86" Pro Dash is customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need from a Holley EFI system. It also includes an integrated ten LED shift light as well as two LED's on the top left and two on the top right that can be programmed as desired.
