ELECTRIC TOILET CONV KIT 12V

Upgrade your marine sanitation system with the Jabsco Electric Toilet Conversion Kit (37010-0092), a complete solution that converts most manual marine toilets to electric operation with easy push-button flushing. Designed for reliability and convenience, this kit is ideal for boaters who want the comfort and simplicity of electric flushing without replacing the entire toilet. This conversion kit allows you to retrofit Jabsco manual toilets as well as many other brands’ manual toilets with a standard 4-bolt 3-3/4" diameter bolt pattern (including Graco, Raritan, Wilcox-Crittenden, Mansfield, and Sealand) to full electric flush operation. The kit uses your existing toilet bowl, seat, and plumbing, making installation straightforward without altering inlet or discharge seacocks.

Key Performance Features:
* Complete Motorized Assembly: The kit includes a 12V DC motor and macerator unit that replaces the standard manual pump. This ensures that waste is thoroughly broken down before being sent to the holding tank, reducing the risk of clogs.
* Dual-Function Pump: It features a built-in self-priming centrifugal pump for the rinse water intake and a high-capacity macerator for the discharge, managing both tasks simultaneously with one touch.
* Simple Operation: It comes with a heavy-duty push-button switch, making the toilet as easy to use as a household model.
* Flexible Installation: The pump can be mounted on either the left or right side of the toilet bowl, providing flexibility in tight head compartments.
* Broad Compatibility: Specifically designed to fit Jabsco 29090 and 29120 series manual toilets, as well as several models from brands like Raritan, Groco, and Wilcox Crittenden.

Technical Specifications:
* Voltage: 12 V DC (fuse rating: 25 A)
* Inlet Hose Size: 5/8" – 3/4" (16–19 mm) ID
* Outlet Hose Size: 1" or 1-1/2" (25 mm or 38 mm) ID
* Self-Priming Vertical Lift: Up to 4 ft (1.2 m)
* Maximum Below Waterline Install: Up to 3 ft (1 m) with vented loop controls
* Overall Dimensions: ~13-1/4" L × 8-1/4" W × 3-1/4" H (34 cm × 21 cm × 8 cm)
* Installation: Retrofit use with existing toilet hardware.

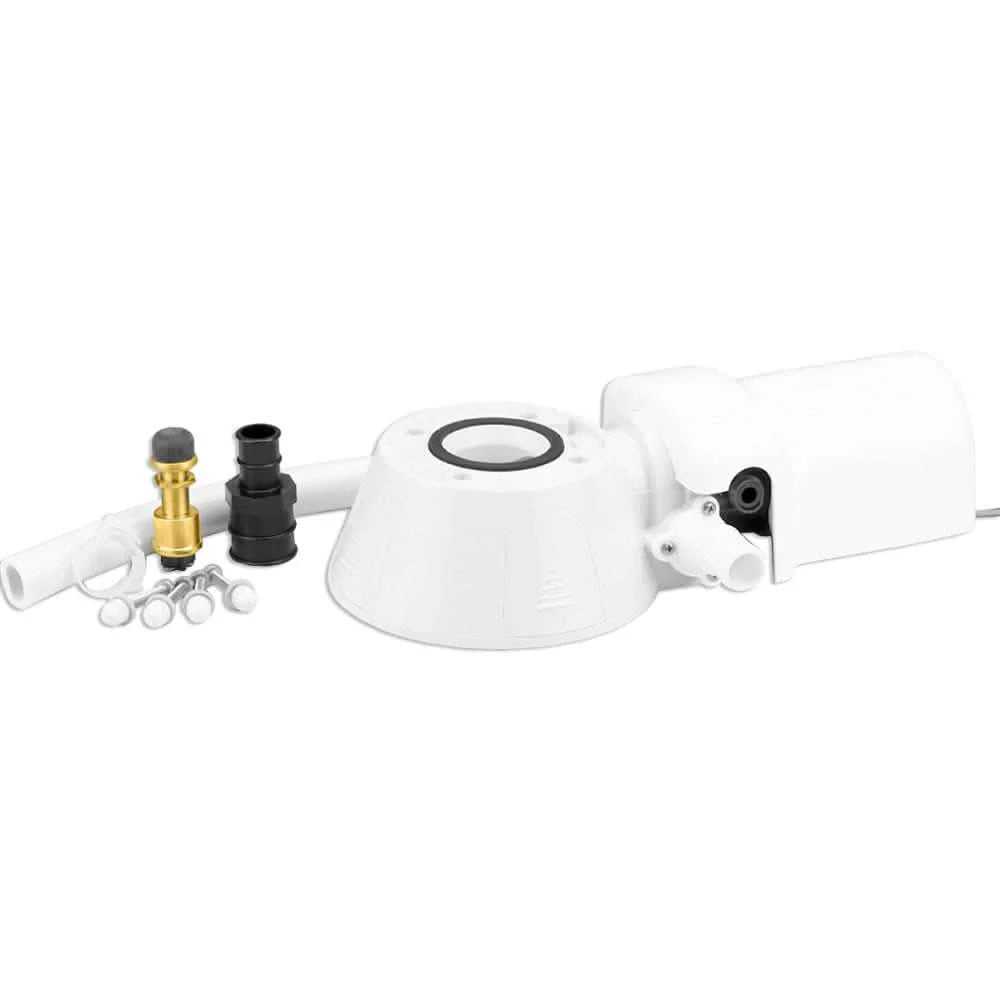

What's in the Box:
* 12V Motor and Macerator assembly
* Base and bowl gasket
* 1" to 1-1/2" discharge port adapter
* 3/4" to 5/8" inlet port adapter
* Heavy-duty push-button switch
* Fasteners and wiring connectors.
