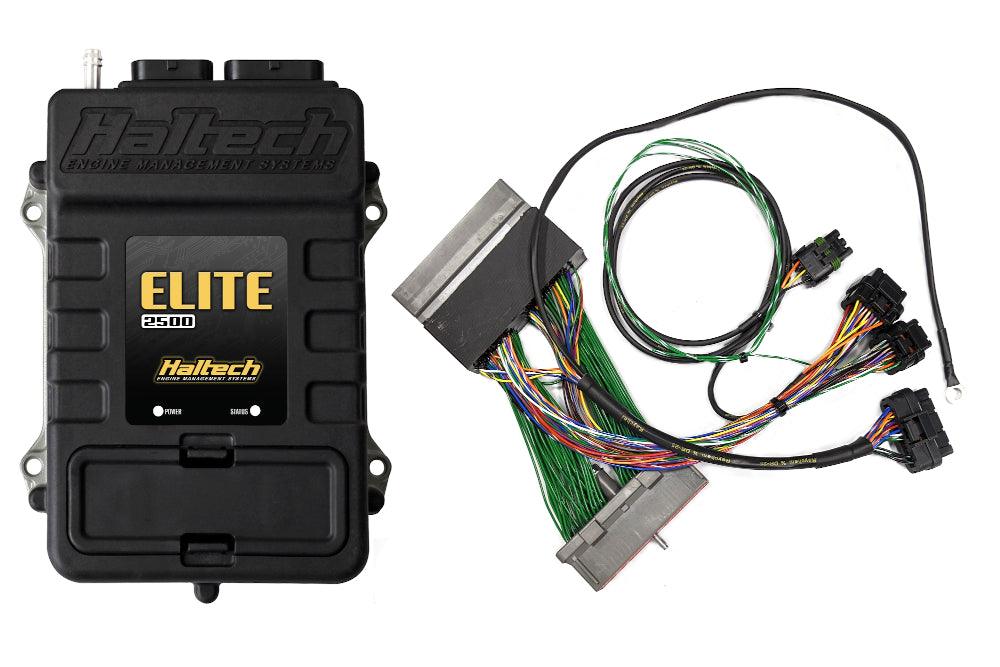

Elite 2500 ECU

The Haltech Elite 2500 ECU is a professional-grade engine control unit that redefines engine calibration capabilities. Encased in a robust, environmentally sealed waterproof case, it offers advanced features such as drive-by-wire throttle control, intake and exhaust cam control for up to four camshafts, and both short-term and long-term map learning. Its dual-channel knock control and user-friendly Elite Software Programmer (ESP) provide tuners with the tools needed for precise engine management. This ECU supports a broad spectrum of engines, including 1 to 12 cylinder and 2 to 4 rotor configurations, whether naturally aspirated or forced induction. It employs flexible load sensing methods using Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF) sensors. Fuel delivery can be managed through various injection patterns like staged, sequential, semi-sequential, batch, or multipoint, and it is compatible with a wide array of fuels including petrol, LPG, methanol, and ethanol. Ignition control is equally versatile, supporting distributor, multi-coil, expanded CDI range, or Haltech Multiplex CDI systems. Connectivity is facilitated through CAN and USB (Windows), allowing seamless integration with display dashes and expansion devices. The Elite 2500 boasts extensive I/O capabilities, with 8 fuel injection outputs, 8 ignition outputs, 12 digital outputs, 10 analog voltage inputs, and 4 synchronized pulsed inputs. Further expansion up to 45 channels is possible via CAN. Additional features include closed-loop O2 control, dual-channel knock control, and sophisticated engine protection settings. This specific kit, the HT-151390, is a Plug 'n' Play replacement ECU designed for the 1999-2004 Ford Mustang GT and Cobra models, compatible with both automatic and manual transmissions. It includes the Elite 2500 ECU, a molded plug 'n' play adaptor harness, an air temp sensor, an HPI8 ignition module, a USB programming cable, and a software key.
