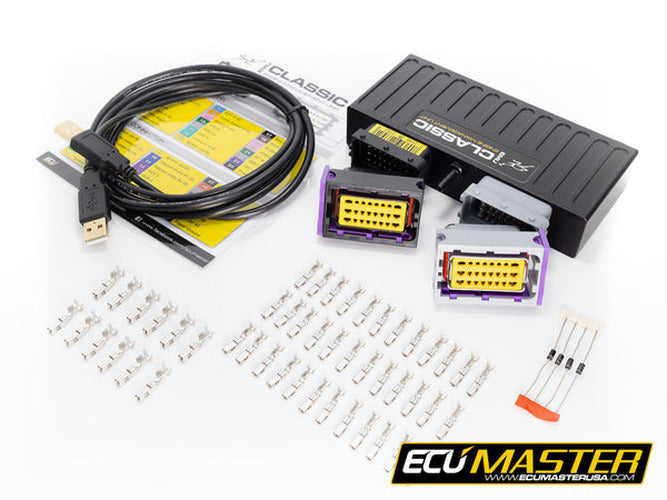

EMU Black Standalone ECU

The ECUMaster EMU Classic represents an enhanced version of their popular engine control unit, built upon customer feedback to deliver advanced engine management at an affordable price. This unit is engineered to operate sophisticated engines, controlling fueling, ignition, and auxiliary systems for engines ranging from 1 to 12 cylinders. It also supports modern features like drive-by-wire throttles (with an additional module) and variable valve timing (VVT). Key technical specifications highlight its robust capabilities: 6 fuel injector outputs (5A, supporting 12 injectors in batch fire), 6 AUX outputs (5A), and 6 ignition outputs (7A, supporting up to 12 cylinders). It includes 4 stepper motor outputs, 2 EGT input channels, 2 knock sensor inputs, and a built-in Bosch LSU 4.2 wideband O2 controller. The unit also features a built-in 4-bar MAP sensor and barometric pressure sensor, along with multiple digital and analog inputs. With a maximum RPM of 16000 and high-resolution injection and ignition timing, the EMU Classic offers precise control. Further enhancing its versatility, the EMU Classic incorporates advanced strategies for PID idle and boost control, nitrous control with dedicated tables, and motorsport features like launch control and flat shifting. It offers logging for over 100 parameters and full Flex Fuel capability. Advanced features, such as Drive By Wire throttle control and Bluetooth connectivity for Android devices, are available with optional modules. The unit comes with user-friendly software offering free firmware upgrades and a 24-month warranty.
