Engine Wiring Harness Kit

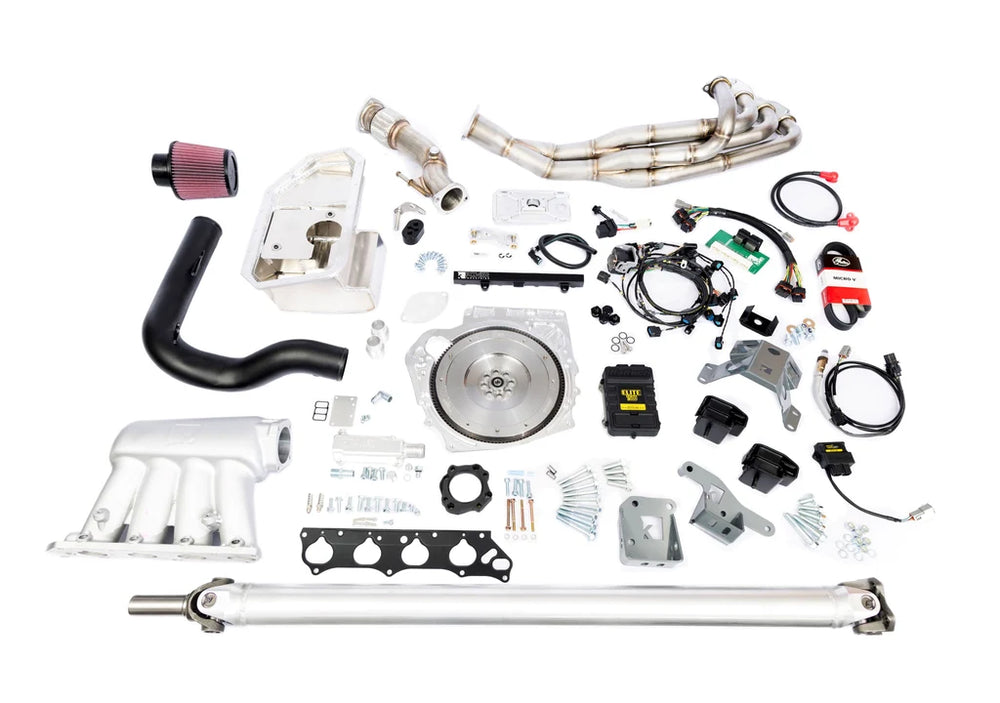

The KPower Complete K Swap Package provides a robust solution for integrating K-series engines into compatible vehicles, specifically the 2013-2021 Toyota/Scion/Subaru 86/FRS/BRZ. This comprehensive kit includes a Haltech Elite 1500 ECU, a motorsports-grade engine wiring harness that is 100% plug-and-play, and an ECU jumper harness with a jumper board. It also comes with essential sensors like Bosch oil pressure and temperature sensors with adapters, and an alternator extension cable with a battery stud. For optimal compatibility and installation, this package is designed for 2004-2008 K24A sensors, including crank, knock, and injectors, and is wired for a 2006-2008 Acura TSX A/C compressor. If using injectors other than OEM K24A, KPower can swap in the appropriate injector sub-harness. The included engine mounts are compatible with JDM K24A RBB, K24A2, K24A3, K24A4, K20Z3, K20Z4, and K24A8 engines. However, they do NOT fit K20A2, K20Z1, or K24A1 blocks due to incompatible bolt-hole locations. Installation notes are provided, including specific steps for Link ECU users regarding bridge connector settings. KPower also recommends supporting parts such as a specific OEM parts package, water pump housing, harmonic balancer, and various clutch options depending on build type. For Haltech ECU users, recommended supporting parts include CAN gauges and a flex fuel kit.
