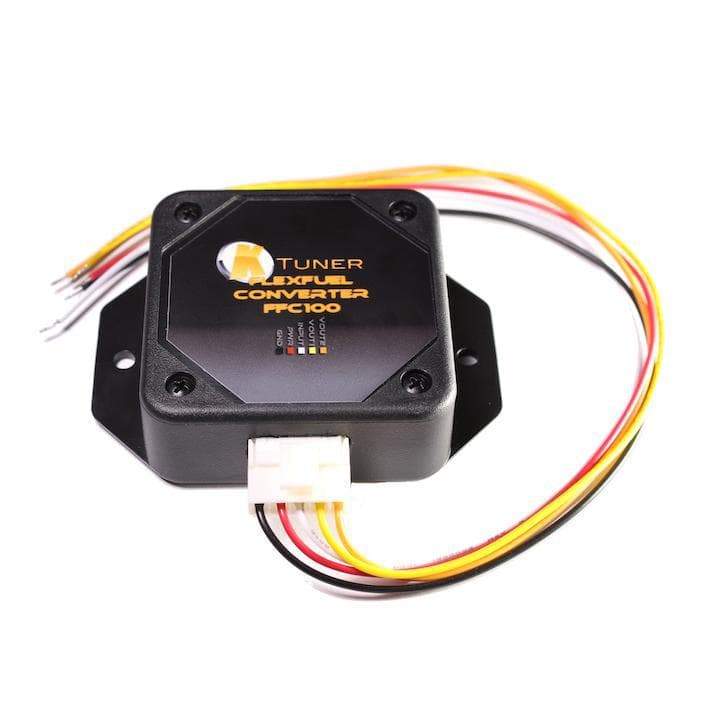

Ethanol Content Analyzer Module

The KTuner Flex Fuel Converter (FFC100) is an essential component for vehicles utilizing KTunerFlash applications that require Flex Fuel support. This converter takes the signal from an ethanol content sensor and transforms it into a usable voltage signal for your vehicle's ECU, allowing for seamless integration of flex fuel capabilities. The converter features clearly labeled pigtail connections for straightforward installation. The Black wire connects to Ground, the Red wire requires a switched +12V ignition source for power, the White wire serves as the input from the ethanol sensor, and the Yellow wire (VOUT1) provides the crucial voltage output. This output ranges from 0.5V at 0% ethanol content to 4.5V at 100% ethanol content, directly communicating the fuel blend to your ECU. Users are advised to mount the converter in a protected location if corrosion is a concern in their environment. The unit is compatible with KTunerFlash applications and can also be used with Hondata FlashPro systems.
