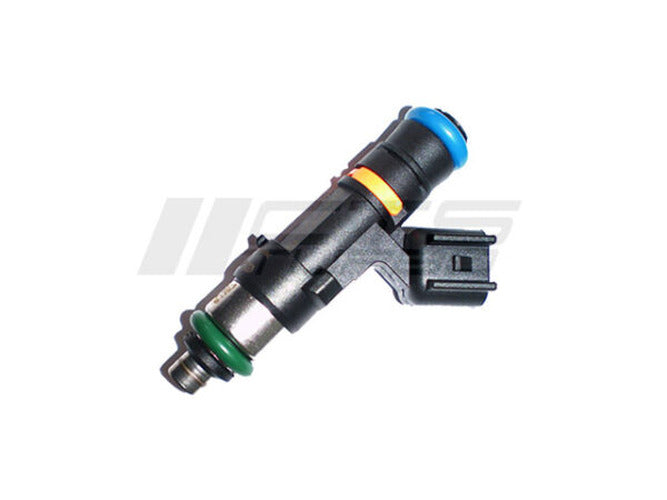

EV-14 95 lb/hr High Impedance Fuel Injectors

The Bosch EV-14 1000cc fuel injectors are a set of four standard-length units designed for enhanced engine performance and running quality. These high-impedance injectors offer a flow rate of 95 lbs/hr (1000cc/min) at 43.5 PSI (3 BAR) and can handle higher pressures, with many tuners pushing them to 6 bar and above. Engineered with a single orifice tip and a wide split cone spray pattern, these injectors improve mixture preparation and atomization, leading to better idle quality and lower BSFC compared to other high-flow injectors. Their design allows for linearity and controllability at low pulse widths, making them suitable for ULEV applications and preventing compromises in low-speed driveability despite their high flow rate. Key specifications include a coil resistance of 12 Ohms, making them compatible with most factory ECUs and injector drivers. The electrical connector is USCAR (New-style V=EV6 / Oval / LS2), and they are fitted with Viton upper and lower o-rings. The overall length is 65.5mm, with an o-ring seat-to-seat dimension of 48.5mm. These injectors are perfect for 2V, 3V, and 4V head applications requiring a high flow rate with a wide dynamic range and superb idle quality. Adapters may be required for specific Audi/VW applications, such as EV14 to EV1 adapters for 1.8T, 2.7T, and VR6 engines, or EV14 to Nippon Type A adapters for R32 models.
