EV14 Fuel Injector

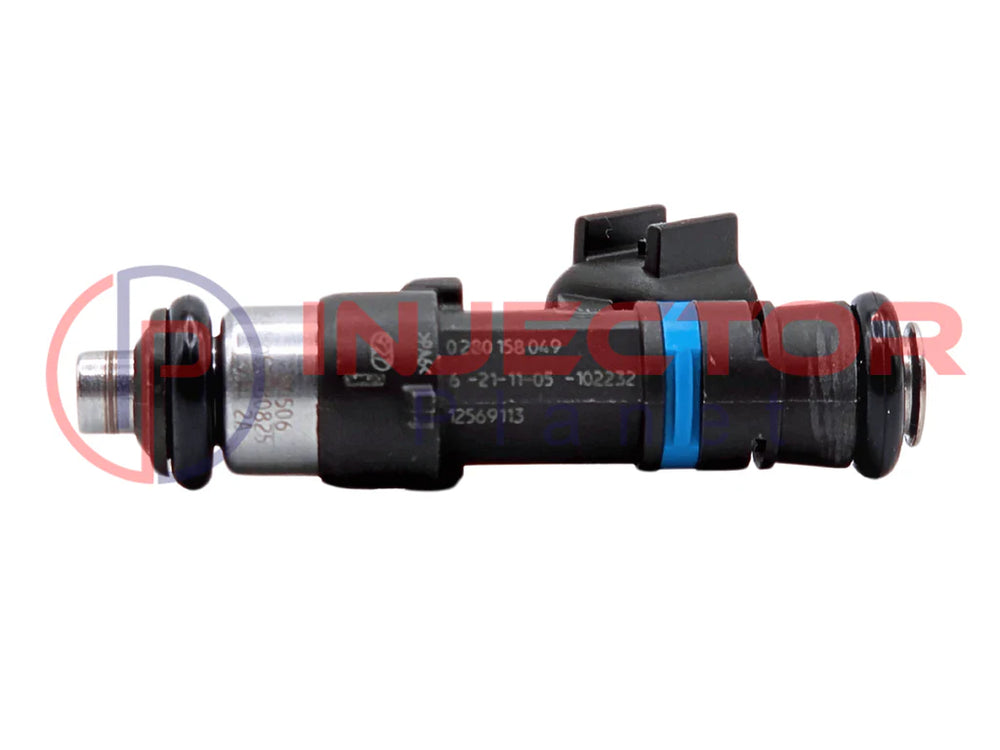

The Bosch 0280158049, also known by its GM part number 12569113, is a high-performance EV14 fuel injector. It features a standard body length of 48.65 mm, a USCAR/EV6 connector, and a 4-hole nozzle that produces a Type C single cone spray pattern with a 14-degree cone angle for precise fuel delivery. This high-impedance injector has a coil resistance of 12 Ohms. This injector is rated for a flow capacity of 29.4 lb/hr (222 g/min N-Heptane, 308.6 cc/min) at 43.5 psi (3 bar). It is fully compatible with E85, Methanol, and Gasoline, and features Viton O-rings (Blue upper, Red lower). This injector is specifically mentioned for use with the GM 6.0L V8 LS2 motor and is also listed under ACDelco part number 217-1627 and Bosch 62648. Available options include purchasing a single remanufactured injector, a set of eight, a rebuild kit, or a repair and return service. It's important to note that flow matching is not performed on individually sold injectors, and there are no returns on open-box fuel injectors. A tuner should verify all flow and latency data prior to final calibration.
