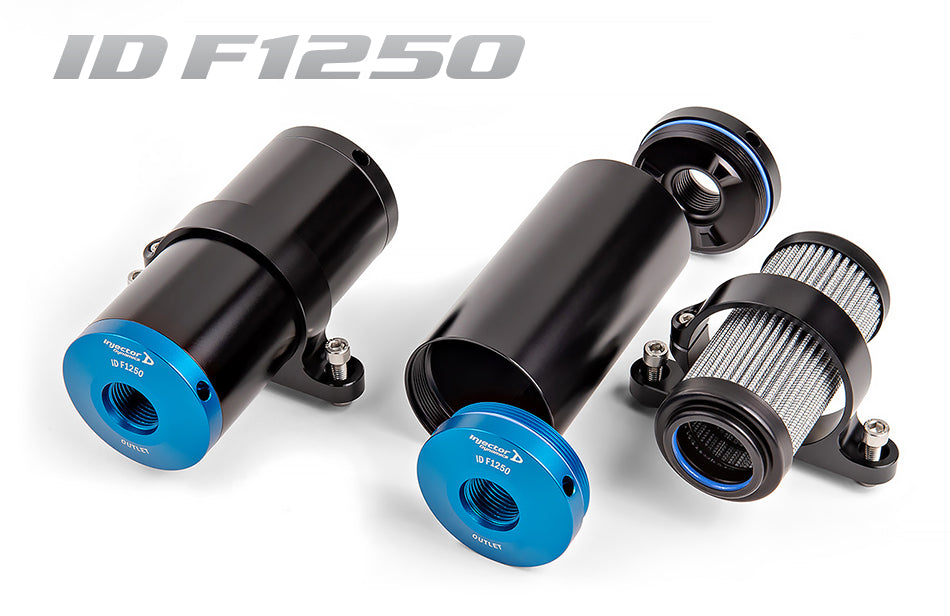

F1250 Fuel Filter

The Injector Dynamics F1250 is a high-flow inline fuel filter engineered to ensure the precise operation of modern electronic fuel injectors. Recognizing that injectors have dimensions and tolerances measured in microns, proper filtration is critical for trouble-free performance. The F1250 meets Bosch's stringent requirements, offering a minimum capture efficiency of 87% at 5 microns and 100% at 35 microns. This fuel filter boasts a flow rate of 1,250 liters per hour with a minimal pressure drop of just 1.1 psi. This high flow capacity is sufficient to support substantial power outputs, estimated at approximately 2,500 horsepower on ethanol and up to 3,750 horsepower on gasoline. The construction of the F1250 includes fully anodized internals, fluorosilicone O-rings, and a durable glass fiber filter element. These materials ensure broad compatibility with all known fuels, including gasoline and ethanol-based blends. The filter is rated for a maximum fuel pressure of 21.0 Bar (300.0 psi) and features a SAE -10 ORB port for fluid connection.
