Fabtech 08-10 Ford F250/F350 4WD 8in 4Link Sys w/Dlss 4.0 C/O& Rr Dlss

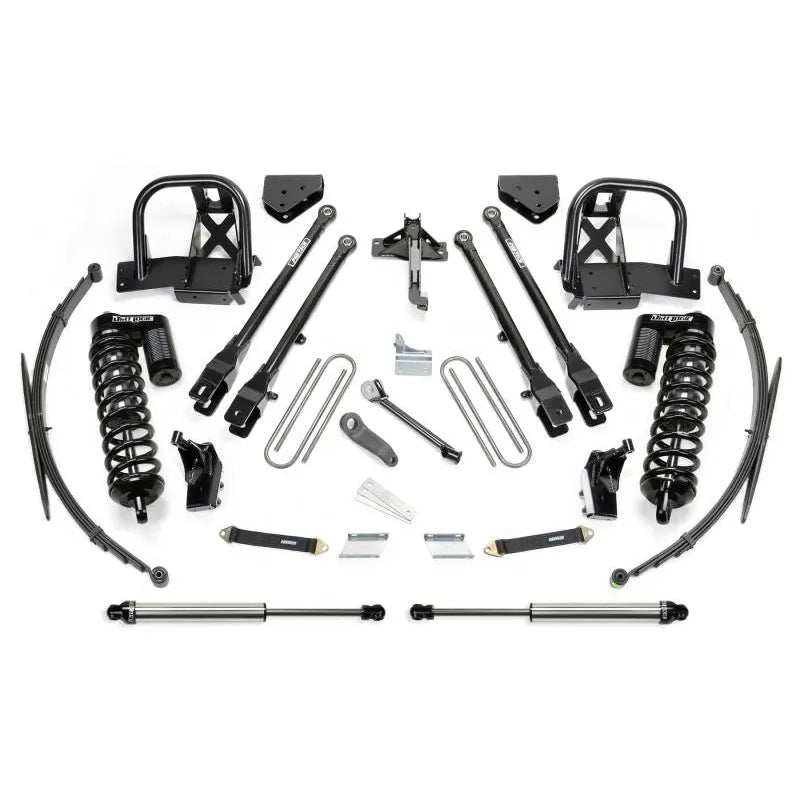

The Fabtech K2068DL is an 8-inch 4-link lift system designed for optimal off-road performance and superior highway comfort. This comprehensive kit includes front Dirt Logic 4.0 Stainless Steel Coilovers and rear Dirt Logic 2.25 Stainless Steel Non-Resi shocks. The Dirt Logic 4.0 coilovers feature a massive 4.0" OD stainless steel body, 3 5/8" OD billet aluminum piston, and 1.25" NitroSteel® black piston rod with adjustable coilover construction and 3/4" spherical ball mounting ends. The rear Dirt Logic 2.25 shocks are designed to replace factory shocks with a larger, more robust configuration, offering superior ride quality on and off-road. They feature a 2.25" OD stainless steel body, 2.0" OD billet aluminum piston, 7/8" NitroSteel® black piston rod, and polyurethane mounting ends. The kit is engineered for full-size vehicles requiring a high-end coilover shock in a bolt-on configuration. It provides unsurpassed articulation and wheel travel with heavy-wall 2-inch diameter links and race-style 1-inch uniballs for superior strength. Installation involves thick 1/4-inch steel brackets to secure the 4-links to the frame without cutting or welding. The system also includes sway bar drops, a track bar relocation bracket, a pitman arm, and a U-bolt kit. Front drive shaft modification may be required to clear the exhaust on gas motors, and rear leaf springs may reduce load-carrying capacity. This kit allows for larger wheels and tires (e.g., 37/13.50R20 on 20x10 wheels with 4 1/2" backspacing or 355/65R18 on 18x9.5 wheels with 4 3/4" backspacing, both with minor trimming).
