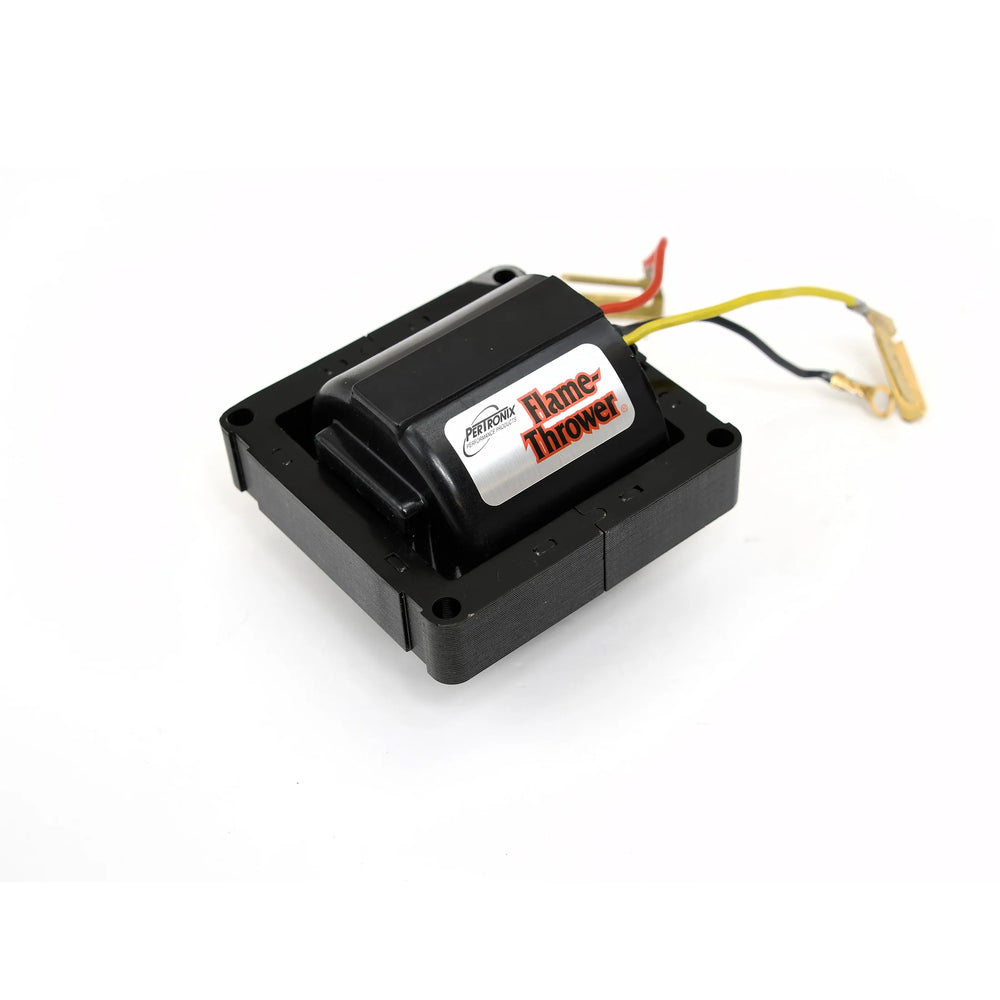

Flame-Thrower HEI Ignition Coil

The Pertronix D3000 Flame-Thrower HEI ignition coil is engineered to replace internal GM coils, offering enhanced performance for HEI type distributors with an in-cap coil design. It provides a 50,000-volt output to deliver a stronger spark. Key specifications include a 75:1 turns ratio, 8.30K ohms of secondary resistance, and an ultra-low 0.05 Ohms primary resistance. When paired with Pertronix Flame-Thrower ignition modules such as the D200O and D2001, it can deliver 100% more energy across the spark plug gap. This ignition coil is legal in all 50 states and Canada, carrying C.A.R.B. E.O. #D-57-21. It is designed as a direct replacement for E-core internal GM coils. While specific vehicle fitment may vary, it is intended for applications requiring an HEI coil-in-cap setup. Modifications may or may not be needed depending on the specific vehicle. Note that some sources suggest Pertronix systems may require 12 volts at the coil at all times, which differs from a 7.0-volt reading observed in some diagnostic scenarios. The product comes with a limited 90-day warranty.
