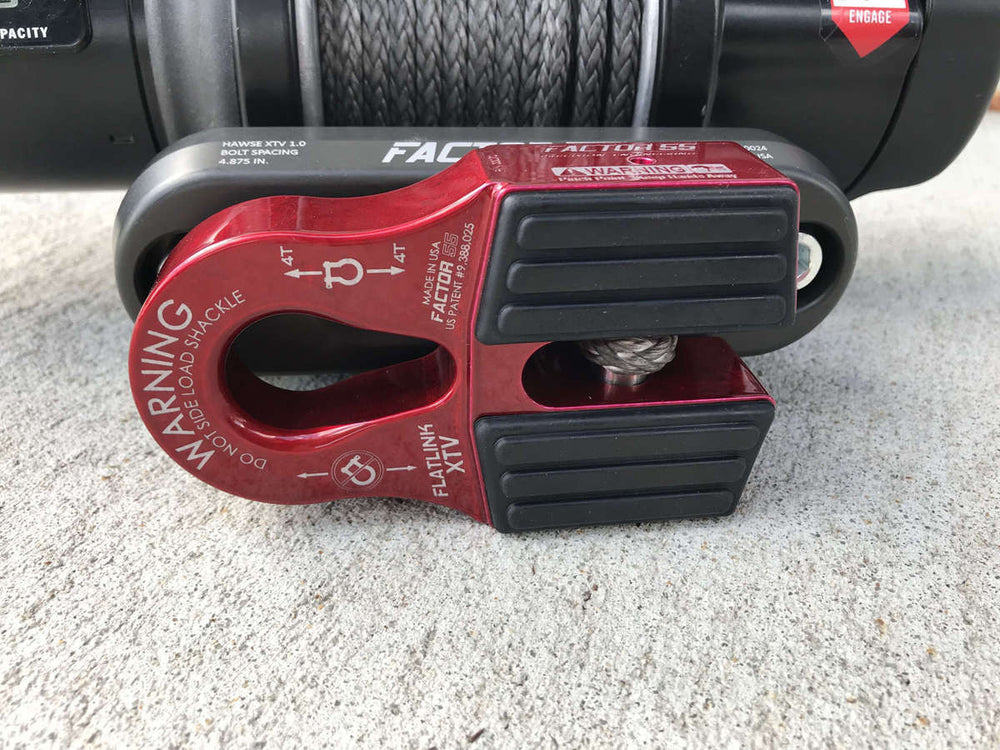

FlatLink XTV Winch Shackle Mount Red Factor 55

Part #: 00070-01

The FlatLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle/D-Ring. Winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery.Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The FlatLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches. The cable eye is retained in the FlatLink XTV by a 7/16 inch diameter titanium double shear pin and internal snap ring.It is easily installed in minutes. The EPDM Rubber Guards protects alloy fairleads and is securely attached to the FlatLink XTV with 4 barbed tips.The FlatLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard 1/2 - 5/8 inch shackles. Made in the USA, the FlatLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized/powder coated in 5 different colors. The FlatLink XTV has a max load rating of 8000 pounds and an ultimate failure of 28,000 plus pounds.Features:FlatLink XTV Winch Shackle Mount RedPrecision machined from 6000 series aluminum and 6Al-4V titaniumWeight - 12.7 ouncesMax load rating: 6000 poundsUltimate failure: 28,000 plus poundsFits steel cables and synthetic winch ropes to 5/16 inch diametersEPDM Rubber Guard protects alloy fairleads and cushions line stowageSimple snap ring removal for shear pinOval hole opening connects to the pin or bow end of 1/2 or 5/8 inch screw pin shackles/D-RingsOval hole opening connects to the pin ends of 3/4 inch screw pin shackles/D-RingsStops hook rattle and fairlead damageColor: RedNotes:U.S. Utility Patent No. 9,388,025Foreign Patents Pending

Features:

• Easy to install and can be used with steel or synthetic winch lines up to 5/16?
• The rope eye is retained in the ProLink XTV with a 7/16?-diameter grade 6AI-4V grade V titanium double-shear pin and internal snap ring for an ultra-secure connection
• EPDM rubber guards are attached with four barbed tips and protects fairleads and prevents rattling
• Works with common ?? and 5/8? shackles (pin and bow end), soft shackles up to 7/16?, and the pin-end of ?? shackles
• Engineered, tested, and made in USA ? patent pending
• Made in the USA
• Limited 1 Year Warranty

The FlatLink XTV replaces the conventional winch hook on powersports vehicles with a versatile shackle mount and stows neatly against the fairlead
