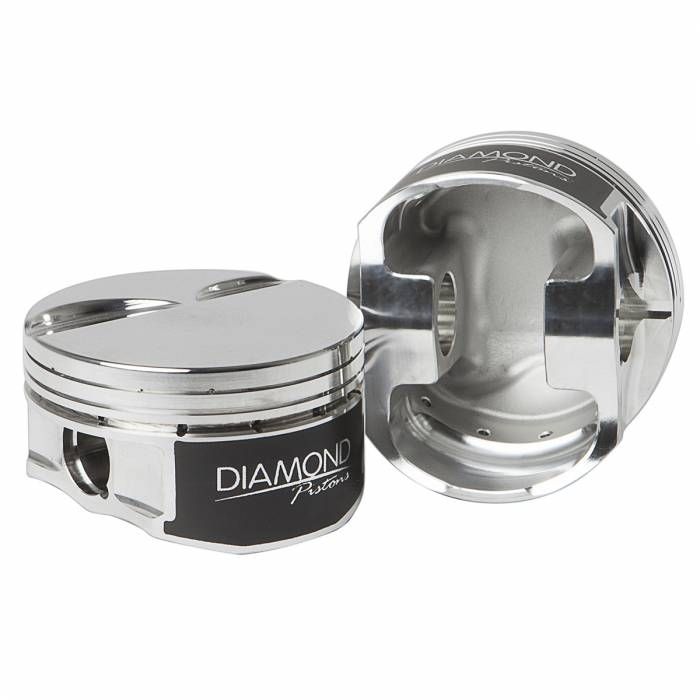

Forged Flat Top Piston Set, 3.780-inch Bore

Whether constructing an LS, LT, Modular/Coyote, or a third-generation Hemi, these pistons offer a robust solution. Constructed from extremely strong 2618 aluminum, these pistons are designed for high horsepower, nitrous, and forced induction applications. The kit features 3D milling on the piston crowns for a ready-to-install finish and valve pockets specifically designed to work with most aftermarket cylinder heads. Offset pins are incorporated for quiet operation, and a moly skirt coating is applied to reduce friction and protect against skirt wear. The compression ratio is figured for a .040 head gasket, and they are designed for an overall stroke of 3.622 inches with a 6.125-inch rod length. This piston set includes a premium 1.0mm x 1.2mm x 2.8mm ring package and premium 8620 .185W wrist pins. The valve pocket depths are 0.176 inches for intake and 0.103 inches for exhaust. All of Diamond's Modern Muscle pistons are forged and machined 100% in the USA, ensuring quality and durability for demanding builds.
