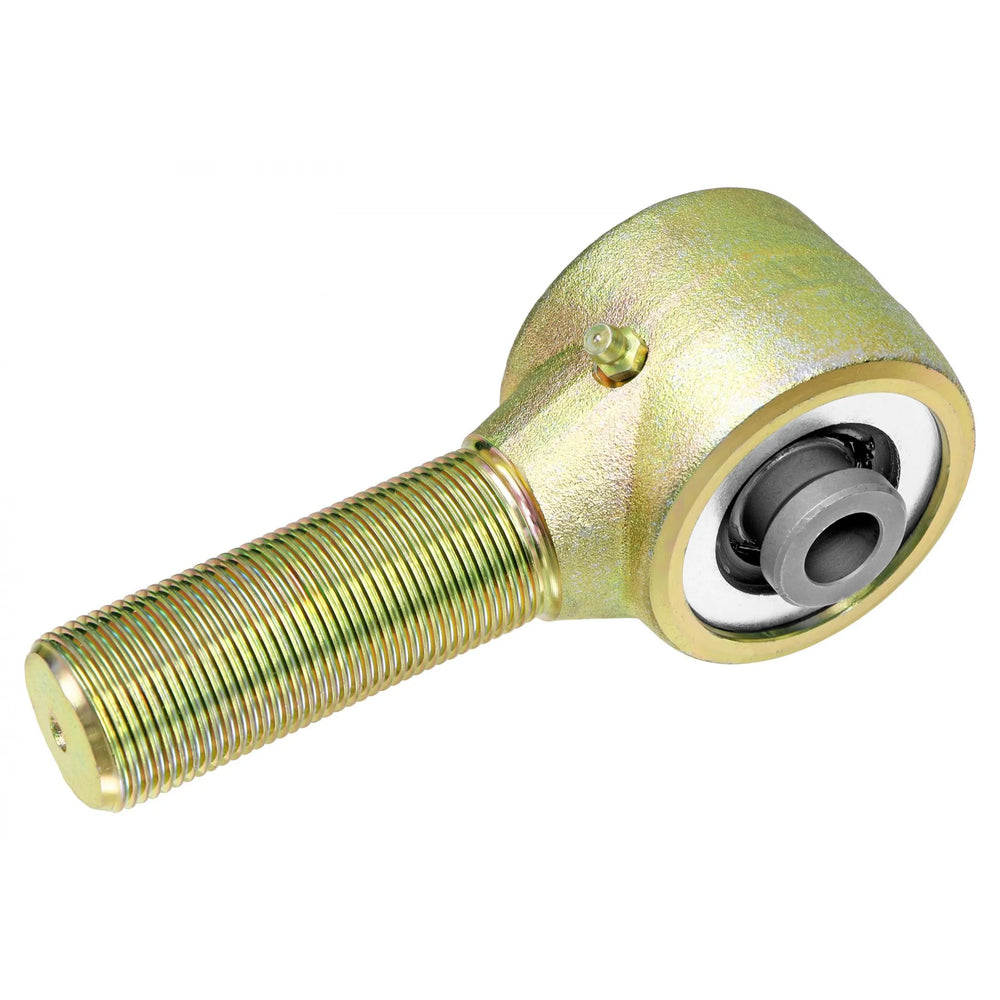

Forged Johnny Joint 2 1/2 Inch 3.280 Inch X 0.718 Inch Ball 1 1/4 Inch-12 Right Hand Threaded Shank Externally Greased Each RockJock 4x4

Part #: CE-9114-21

RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.This specific joint is a 2 1/2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 1 1/4 Inch-12 right hand threads on the shank, and a 3.280 Inch mounting width ball with a .718 Inch thru bolt hole. Finished in gold zinc plating.Details: Forged Johnny Joint2 1/2 Inch3.280 Inch X 0.718 Inch Ball1 1/4 Inch-12 Right Hand Threaded ShankExternally GreasedEach

Johnny Joint (R) Rod End | 2.5 in. | w/1.25 in. RH Thread/.718 Hole X 3.280 Ball
